At a remote site near Thunder Bay, Weatherhaven delivered a specialised aircraft hangar based on its proven Series 4 Truss platform. This project required a robust, rapidly deployable structure capable of performing in northern Canada’s demanding climate. The selected Series 4 Truss variant provided the ideal balance of strength, durability, and modularity, enabling safe aircraft storage while maintaining operational readiness in an environment defined by heavy snowfall, strong winds, and logistical complexity.

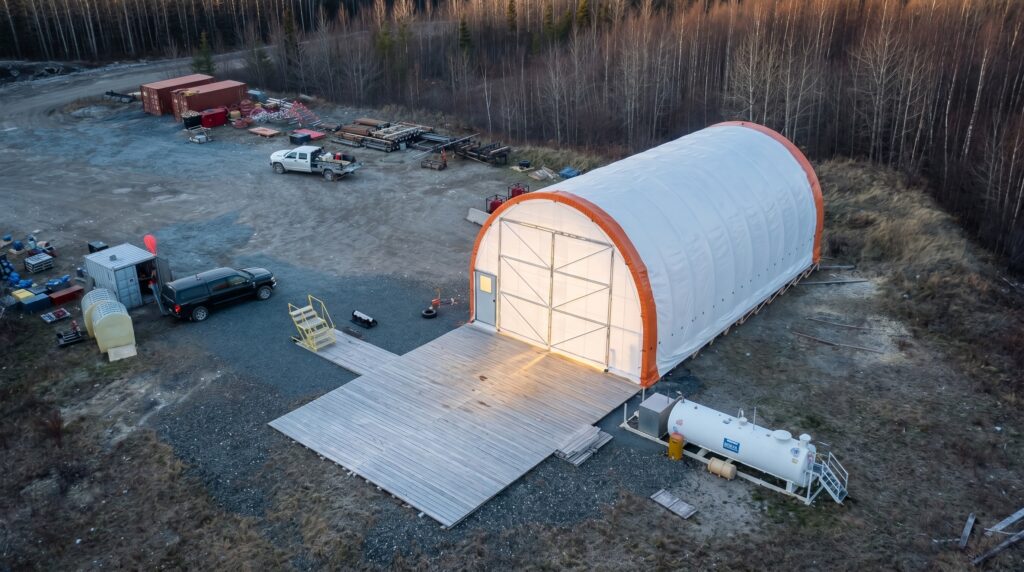

The structure measured 26 by 52 feet with a height of 17.4 feet, forming a compact yet capable hangar footprint . Built with a tubular steel and aluminium frame and a PVC-coated polyester cover, the shelter integrates a Reflectix insulation system to enhance thermal performance. Reinforced with dedicated wind kits and engineered truss geometry, the design significantly improves load distribution, allowing it to withstand snow accumulation and dynamic wind forces typical of northern mining and aviation environments.
Engineered Strength That Thrives In Extreme Snow And Wind Conditions
The defining feature of the Series 4 truss variant is its enhanced structural integrity. By incorporating a trussed frame design, the shelter achieves superior load-bearing capability compared to standard configurations. This is critical in regions where snow loads can accumulate rapidly and unpredictably. The added rigidity also mitigates wind-induced deflection and vibration, ensuring stability even during severe weather events or rotor wash from nearby aircraft operations, maintaining both safety and structural longevity.
Custom Aircraft Access Solutions Designed For Performance Reliability And Safety

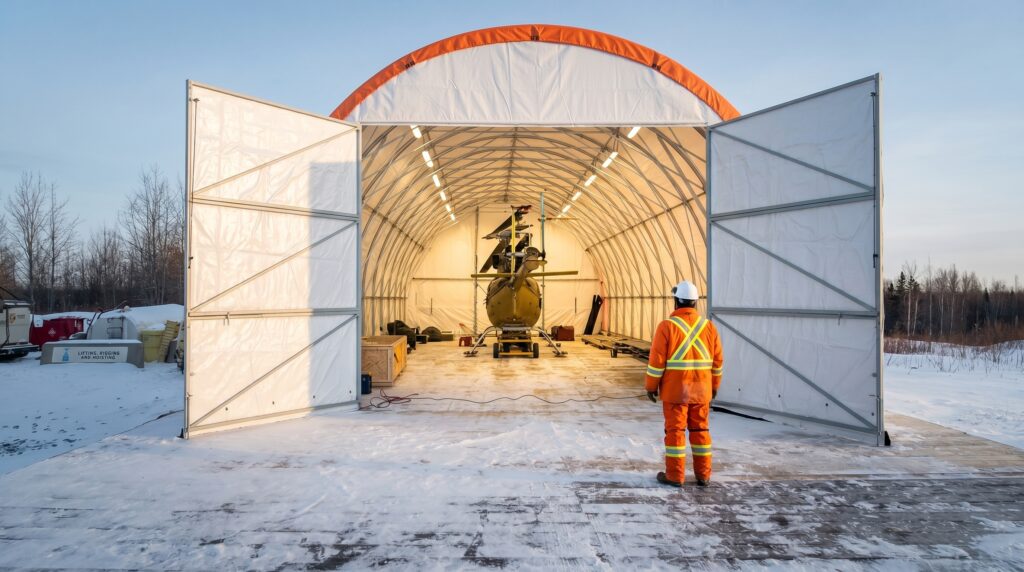

Aircraft compatibility was central to the project’s success. The shelter includes large 14-by-13-foot outswing barn doors, carefully specified to accommodate aircraft dimensions, rotor clearance, and safe manoeuvring . A dedicated personnel access door further enhances usability. Every dimension and opening was tailored in close collaboration with the client, ensuring compliance with aviation handling requirements while maintaining the structural performance expected of a Series 4 truss system in demanding operational conditions.
Expert Field Teams Deliver Precision Builds In Remote Challenging Environments

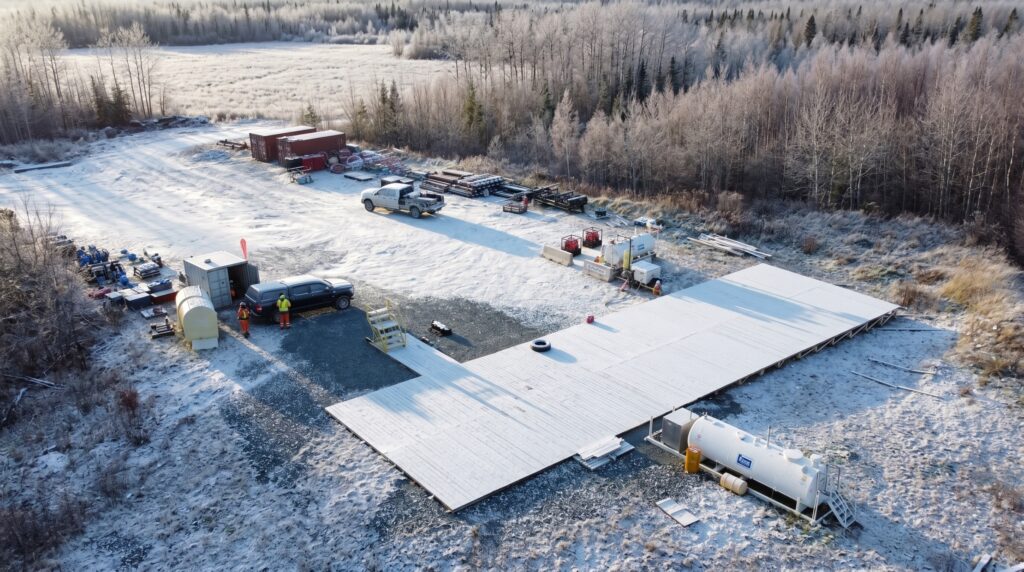

Deployment in such an austere location required the expertise of highly experienced Field Service Representatives. A team of six specialists executed the installation, overcoming logistical constraints including remote access, transport coordination, and environmental exposure . Their ability to adapt, problem-solve, and maintain build precision under pressure is a hallmark of Weatherhaven’s field capability. This expertise ensures that even complex structures like truss shelters are installed efficiently and correctly the first time.
Integrated Systems Ensure Power Lighting Ventilation And Efficiency On Site

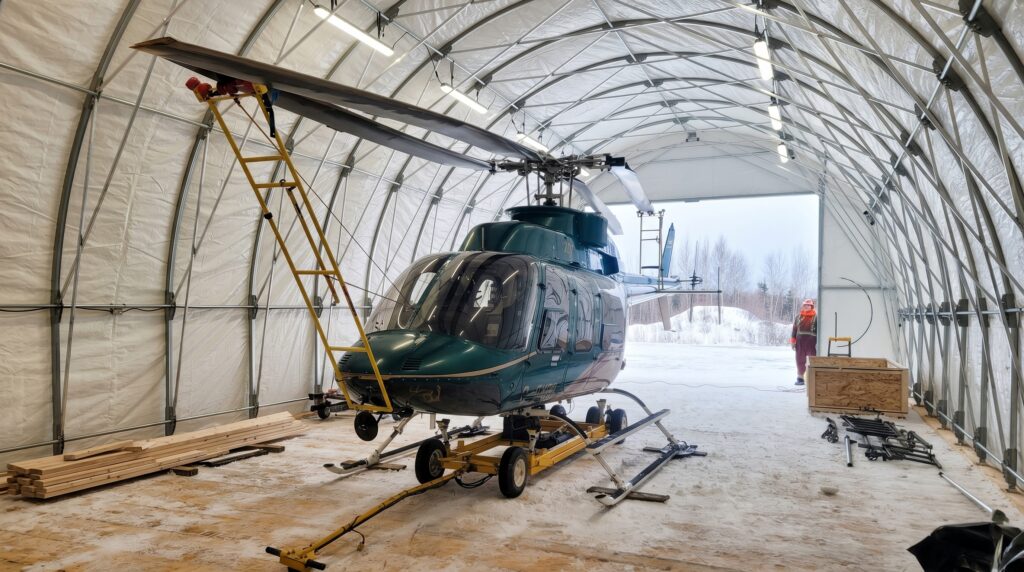

Beyond the structure itself, the hangar was equipped with integrated systems to support daily operations. A full electrical package, including lighting, panel, and outlets, enables immediate usability upon completion . Ventilation features such as HVAC ports and screened openings help regulate airflow and internal conditions. These additions transform the shelter from a simple enclosure into a fully functional workspace, supporting maintenance activities and protecting sensitive aircraft components in a controlled environment.
Collaborative Design Meets Aviation Standards For Safe Functional Hangar Performance
Close collaboration with the client ensured that every aspect of the shelter aligned with operational and aviation standards. From door sizing to environmental controls, each element reflects a deep understanding of aircraft storage requirements in remote settings. This project highlights how the Series 4 truss shelter can be adapted to highly specialised applications, combining proven engineering with bespoke solutions to deliver reliable, high-performance infrastructure in some of the world’s most challenging environments.
