RDMSS
The worlds most advanced soft walled shelter system.
Modular design scales to any mission size or layout
Rapid deployment in under 20 minutes
Lightweight aluminium frame for efficient logistics
Fully insulated with integrated blackout capability
Operates reliably from -51°C to +49°C
Integrated HVAC, ducting, and cable management ports
Connects seamlessly with vehicles and camp infrastructure
MIL-STD tested for extreme environmental conditions
Built upon a major defence programme delivering full integrated logistics support
The Rapidly Deployable Modular Softwall Shelter (RDMSS) is Weatherhaven’s most advanced soft-walled solution. Built from stringent military requirements, RDMSS delivers rapid deployability, unmatched versatility, and enduring reliability. Years of development, testing, and investment have resulted in a shelter system that leads the world in technology, innovation, working environment, and logistical simplicity. Designed for global use in any climatic zone, RDMSS gives operators a mission-ready solution for today’s most demanding operational challenges.
RDMSS. The worlds most advanced shelter system
Example Applications

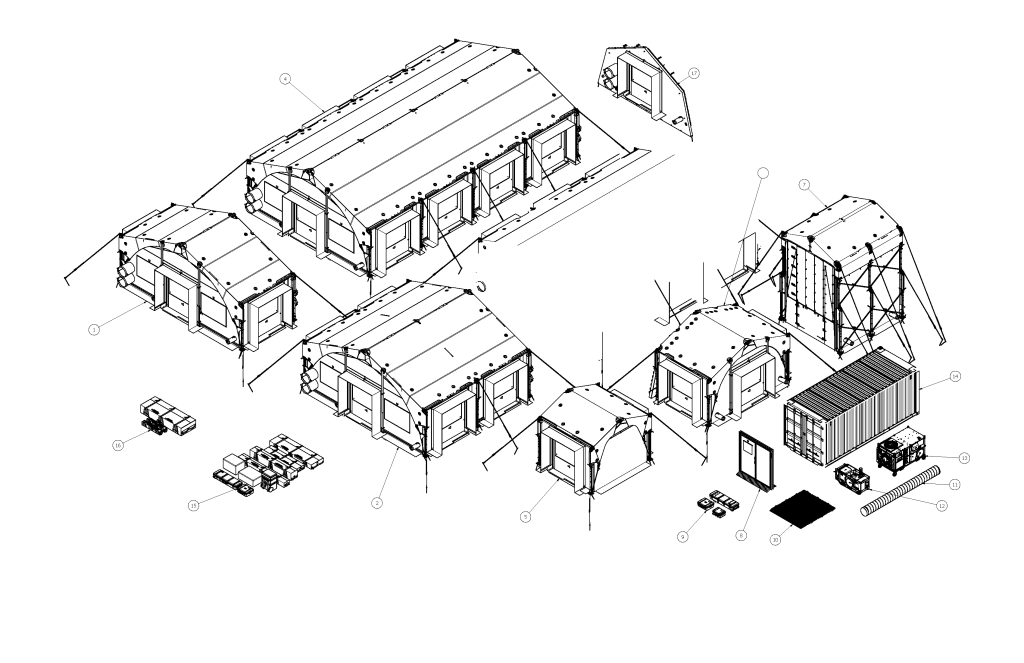

Modular shelters configurable to mission scale and operational footprint

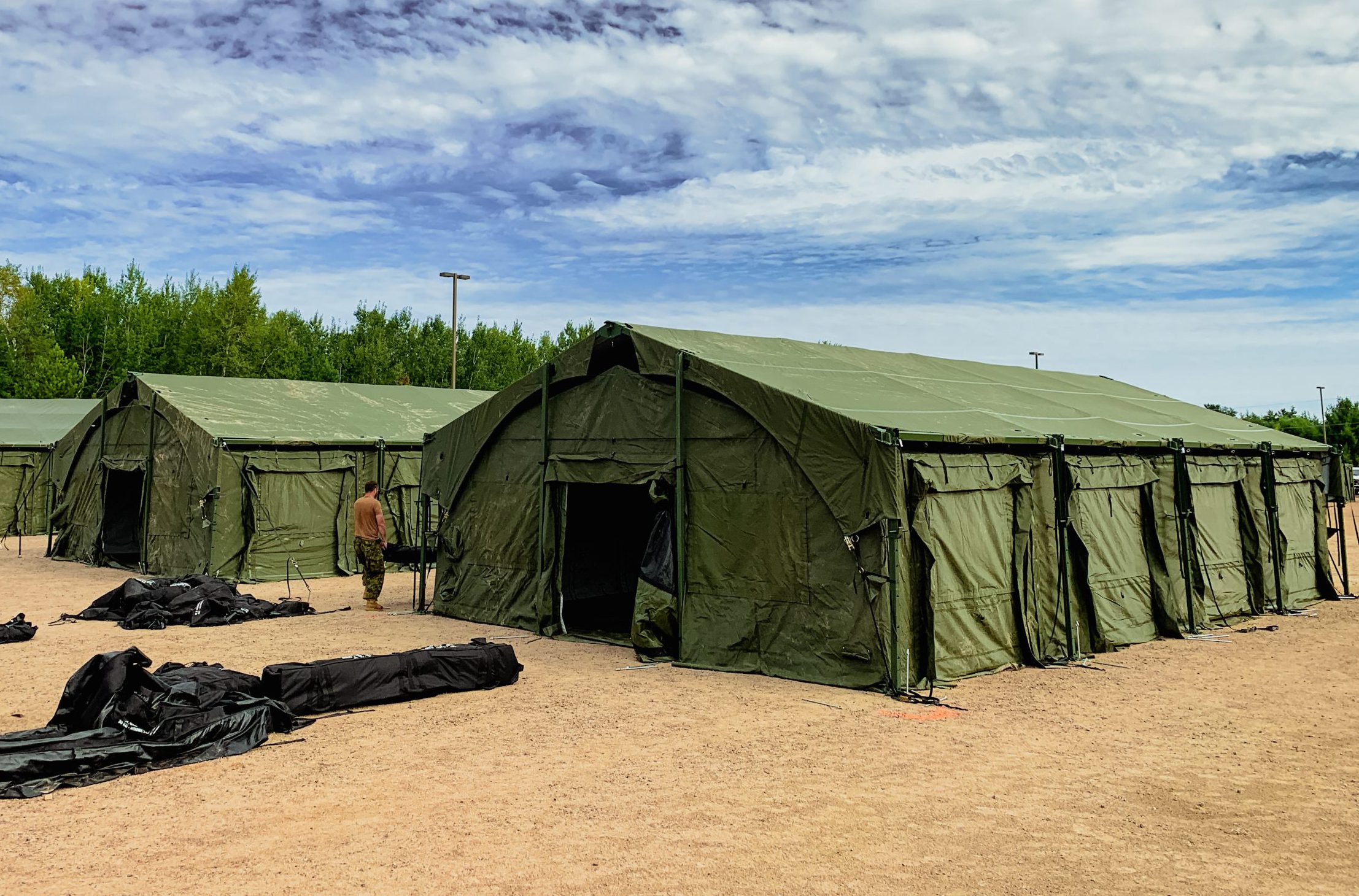

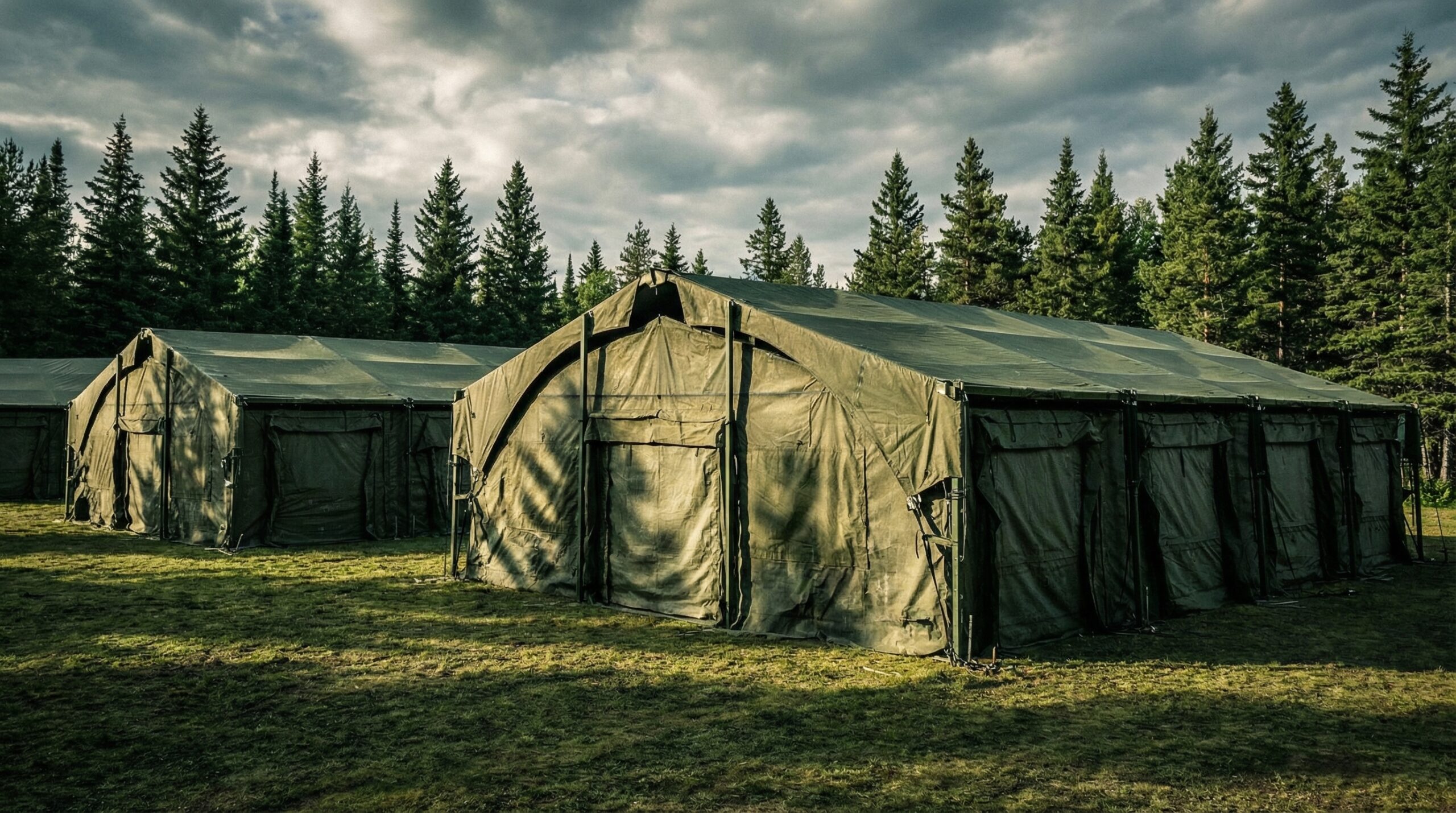

RDMSS comes in standard sizes—1-Mod, 2-Mod, and 4-Mod—with hubs and interfaces enabling limitless configuration. Shelters can be deployed individually or complexed into larger, integrated compounds. The eco-skeleton aluminum frame with advanced flysheets or solar shades provides maximum efficiency, while internal space is optimised for operational use. This modularity ensures flexibility: from small team tasks to brigade-level headquarters, RDMSS can be tailored to the exact footprint required by mission planners.
Scalable system with optional flooring, lighting, and HVAC integration
RDMSS is more than a shelter—it’s a complete infrastructure platform. Its modular design supports optional upgrades such as rigid flooring with cable ducts, integrated lighting, and advanced HVAC. This flexibility enables RDMSS to perform in every climate, from arctic cold to desert heat. By tailoring shelters to mission needs, operators benefit from a highly capable, rapidly deployable system that ensures maximum performance and efficiency for personnel in all operational environments.
Specifications
| Specifications | 4-Module | 2-Module | 1-Module |
|---|---|---|---|
| Deployed Dimensions | 23.8 ft x 41.8 ft | 23.8 ft x 20.8 ft | 23.8 ft x 10.3 ft |
| Effective Floor Area | 995 ft2 | 495 ft2 | 245 ft2 |
| Snow Load Capacity | 20 lb/ft2 | 20 lb/ft2 | 20 lb/ft2 |
| Setup Time | Under 20 minutes | Under 10 minutes | Under 10 minutes |
| Height at Eaves | 86 in | 86 in | 86 in |
| Doors | Up to 10 Soft Doors or Hard Doors | Up to 6 Soft Doors or Hard Doors | Up to 4 Soft Doors or Hard Doors |
| Windows with Clear Vinyl, Screen & Blackout Flaps | Up to 14 Large Soft Windows | Up to 10 Large Soft Windows | Up to 8 Large Soft Windows |
| Points of Interconnection | 10 | 6 | 4 |
| Packed Configuration | 12 Bags | 7 Bags | 6 Bags |
| Total Packed Weight | 2156 lbs | 1426 lbs | 925 lbs |
| Total Packed Volume | 251 ft3 | 177 ft3 | 134 ft3 |

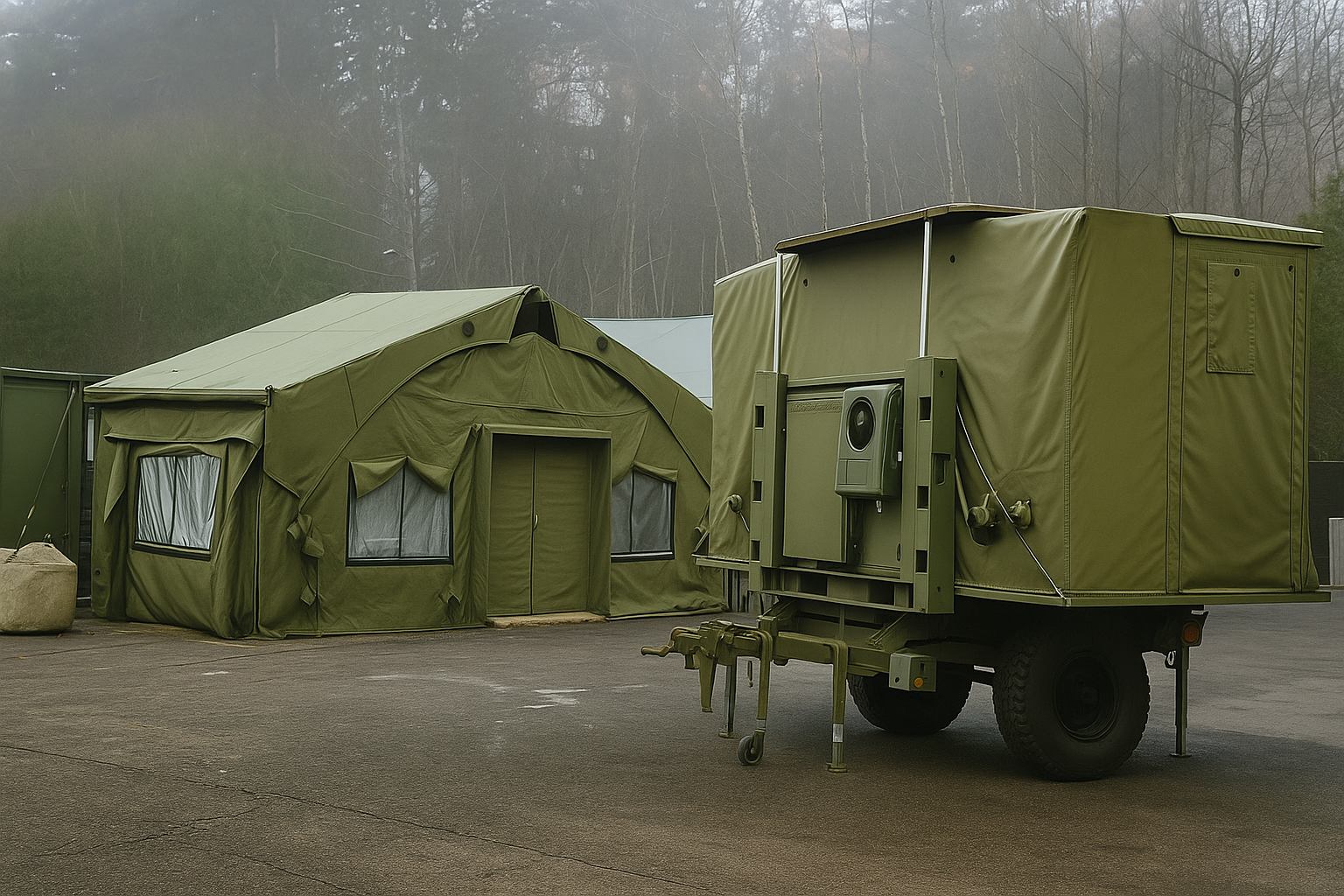

Seamless connectivity to vehicles, assets, and camp infrastructure

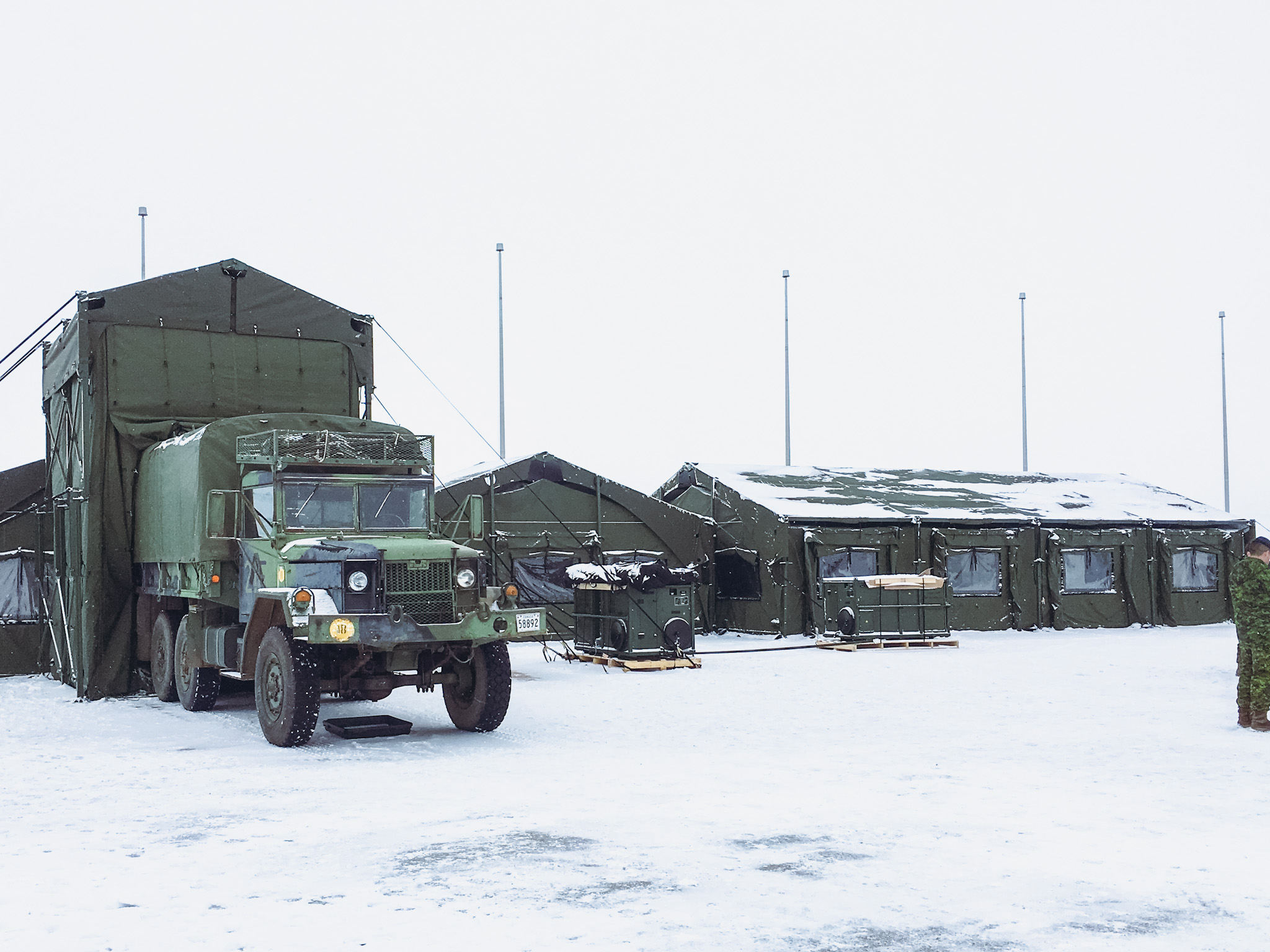

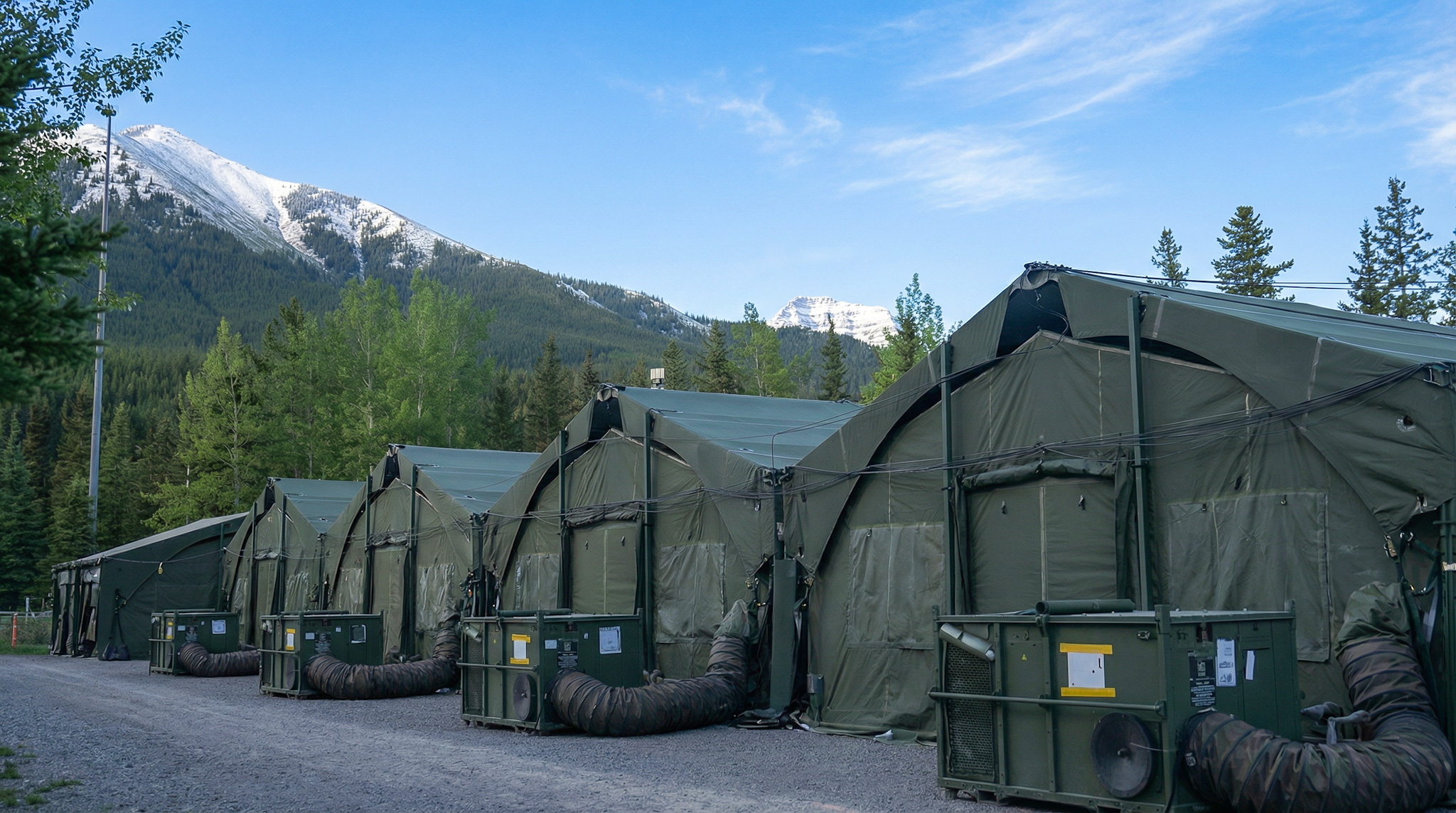

RDMSS integrates easily with other military assets, vehicles, and pre-existing infrastructure through innovative connector hubs. This interoperability ensures it becomes a natural part of larger deployed camps and networks. Shelters can link to vehicles, hard shelters, or other systems to create integrated operating environments. Designed with compatibility in mind, RDMSS maximises existing investments while enhancing mission efficiency. Its ability to combine with diverse assets sets it apart as a fully flexible solution.
Options
Structure & Configuration
Interconnector and corridor kits
Modular length extensions
All-season insulation
Lightweight aluminium frame
Pest-barrier flooring systems
Multiple color options
Anti-static floor tiles
Weather-resistant hard personnel doors
Double-zip roll-up doors with Velcro sealsÊ
Blackout window systems & insect netting
Pre-harnessed modular electrical kits
HVAC plenum ducting
Furnishings & full interior fit-outs
Solar shades & environmental coverings
ECU and HVAC systems
Interconnector kits for all Weatherhaven shelters
Soft bag storage
Full ILS support packages
Operational reliability from short deployments to enduring multi-year missions
Whether deployed for a single-day task or a multi-year operation, RDMSS delivers the same world-class performance. It has been designed to provide adaptable internal layouts, blackout capabilities, and optimized HVAC distribution for comfort and efficiency. For operators working in harsh conditions, RDMSS creates an environment where critical tasks can be completed effectively. Its design ensures reliability and endurance, offering militaries and agencies confidence that the shelter will perform consistently across mission timelines.

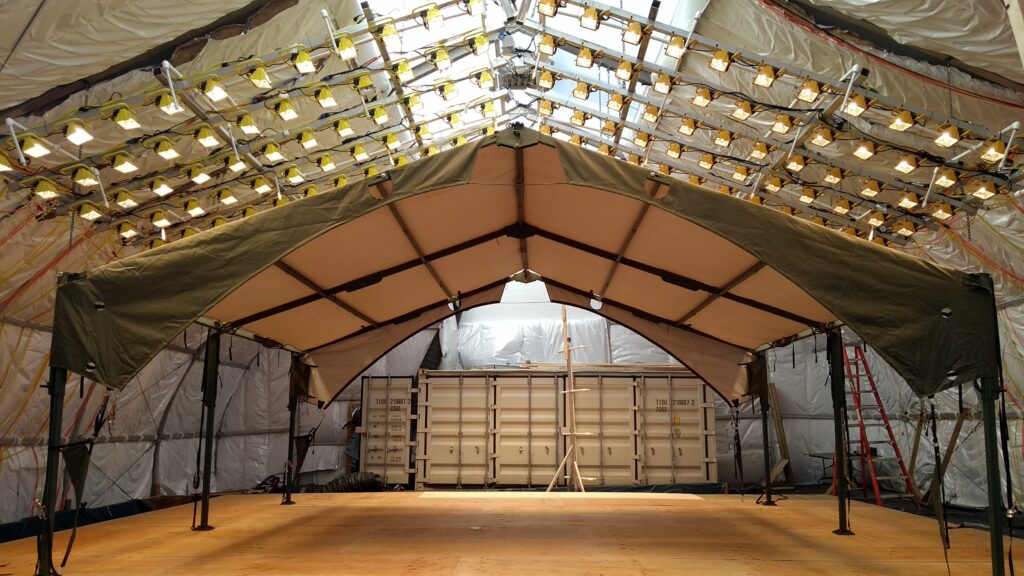

Tested and certified to meet rigorous international military standards

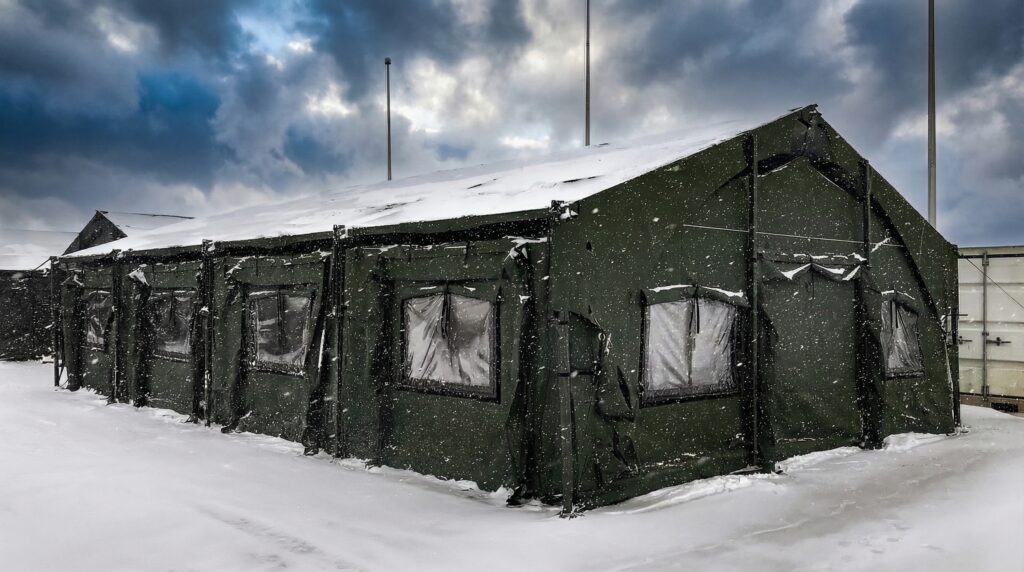

RDMSS has undergone extensive MIL-STD testing, covering extreme heat, cold, humidity, wind, and rain. This rigorous validation ensures that RDMSS performs operation after operation, no matter the environment. Compliance with the latest international defence standards provides operators with absolute confidence in its reliability. With integrated blackout construction, insulated walls, interchangeable doors, and rapid deployment capability, RDMSS delivers tested and proven military-grade performance that sets it apart as the world’s most advanced soft-walled system.
