EHMECC
Raising the roof on 20 foot expanding container capability.
Unmatched expandable 20ft ISO container deployed volume
Raised roof enables versatile, high-clearance applications
Advanced fabric wings ensure superior weather protection
Maintains stable, controlled internal environment
Transportable as standard 20ft ISO container
Rapid deployment in under 10 minutes, no tools
Deployable directly while mounted on truck
Proven design with low training, long operational lifespan
Unprecedented deployed volume with unmatched operational versatility worldwide
The Extended Height MECC (EHMECC) takes the proven MECC platform and elevates it—literally. By raising the roof an additional 1.2m (4ft), EHMECC offers a unique capability unmatched in the field. This increase in height provides operators with more usable space, enabling specialized missions that demand extraordinary interior volume. Whether for command, logistics, or medical use, EHMECC delivers flexibility that reshapes what’s possible with ISO container-based deployable solutions.
EHMECC offers the most deployed volume of any expanding container.
Example Applications
Optional systems transform EHMECC into a complete operational hub

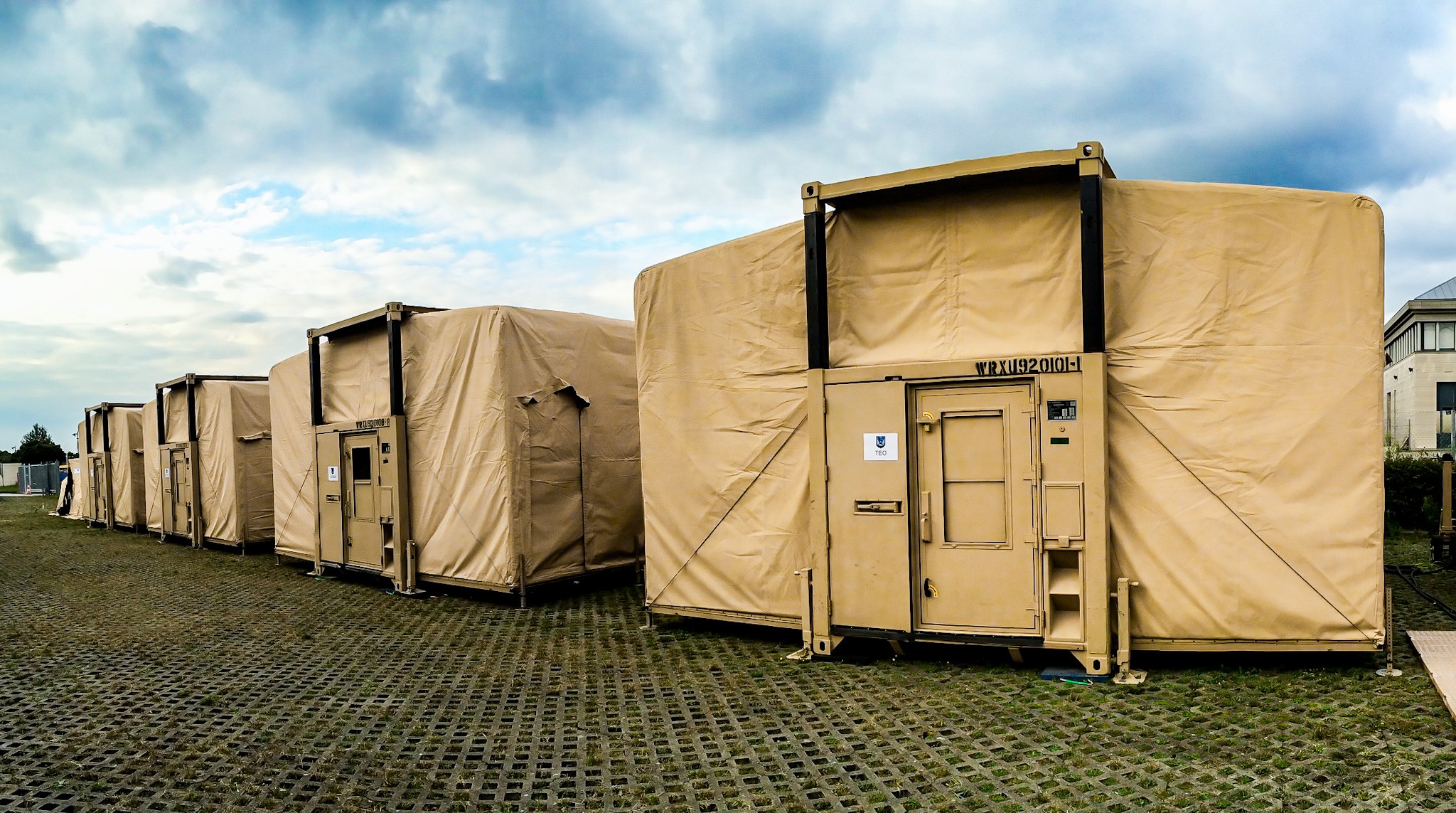

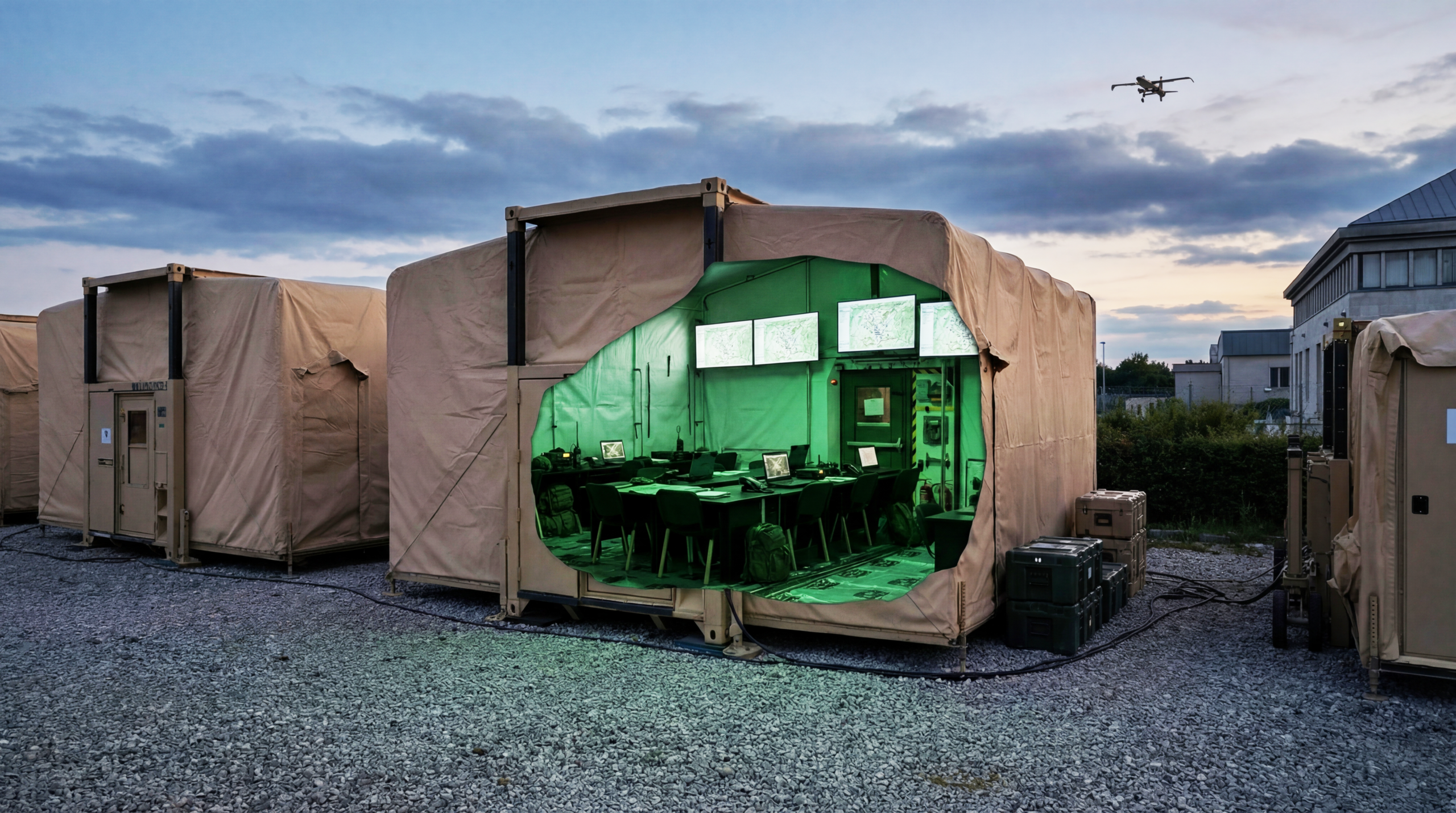

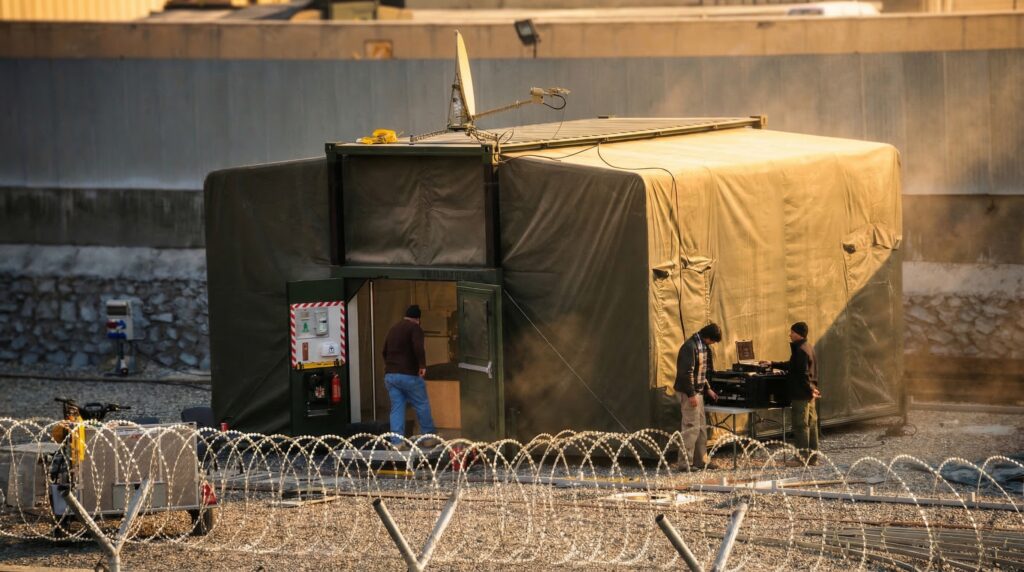

EHMECC can be delivered fully fitted with a range of operational systems. Options include power generation, HVAC, tactical lighting, insulated flooring, and mechanical plant rooms. Window and door configurations can be tailored to the mission, while specialized electrical and network installations enhance functionality. Whether configured as a command post, medical facility, or maintenance workshop, EHMECC delivers more than shelter—it becomes a mission-ready hub of operations, enabling sustained performance in demanding environments.
Increased height enables extraordinary applications in the field

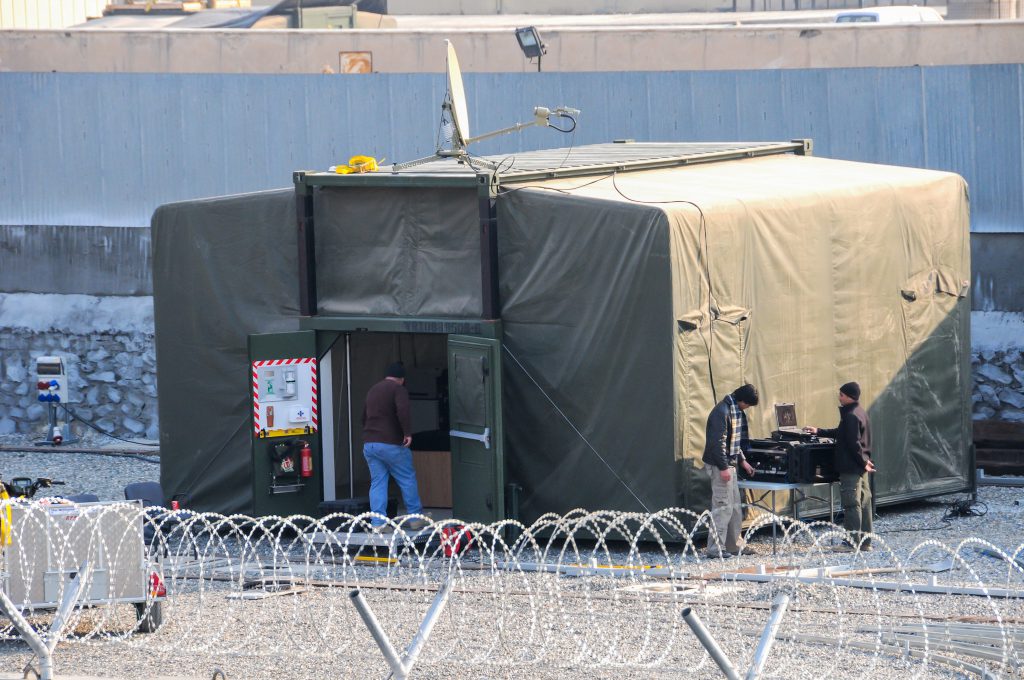

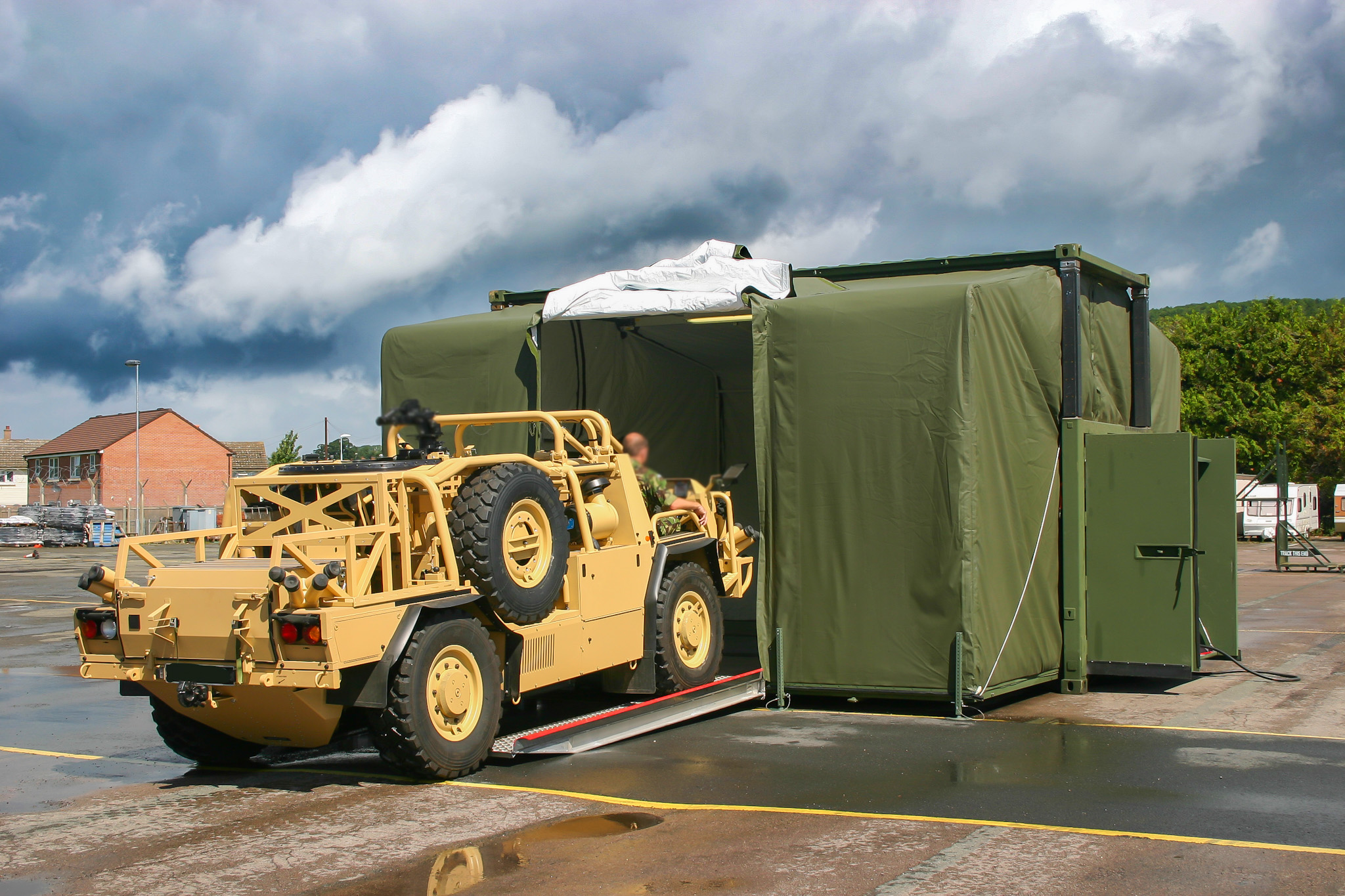

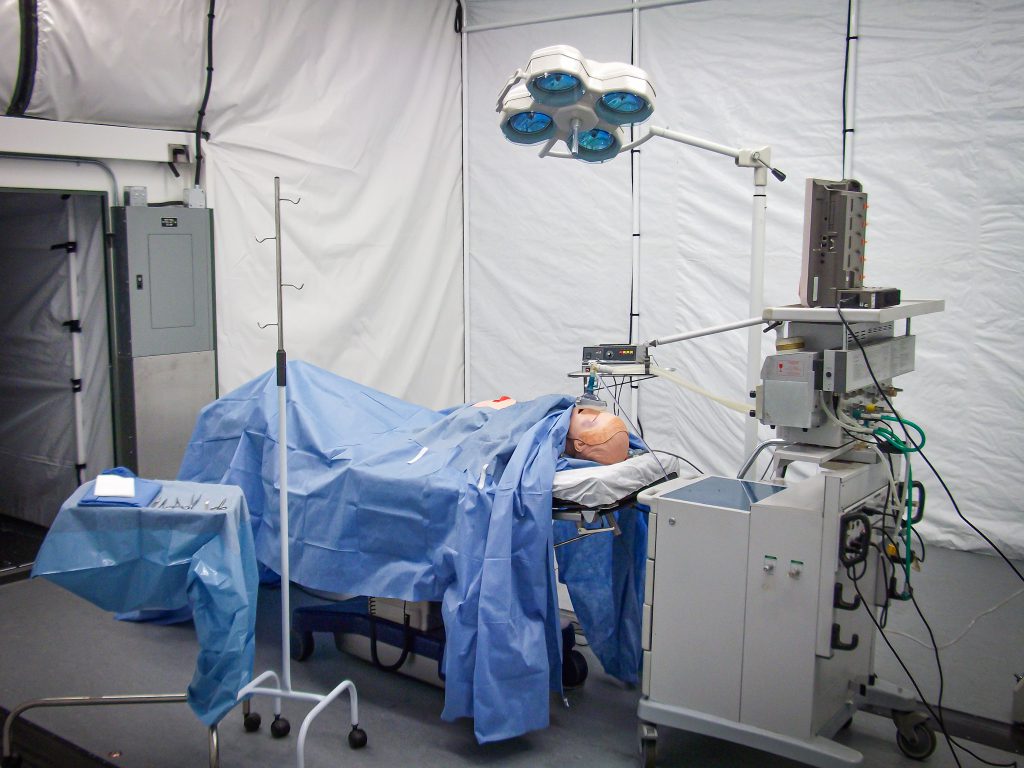

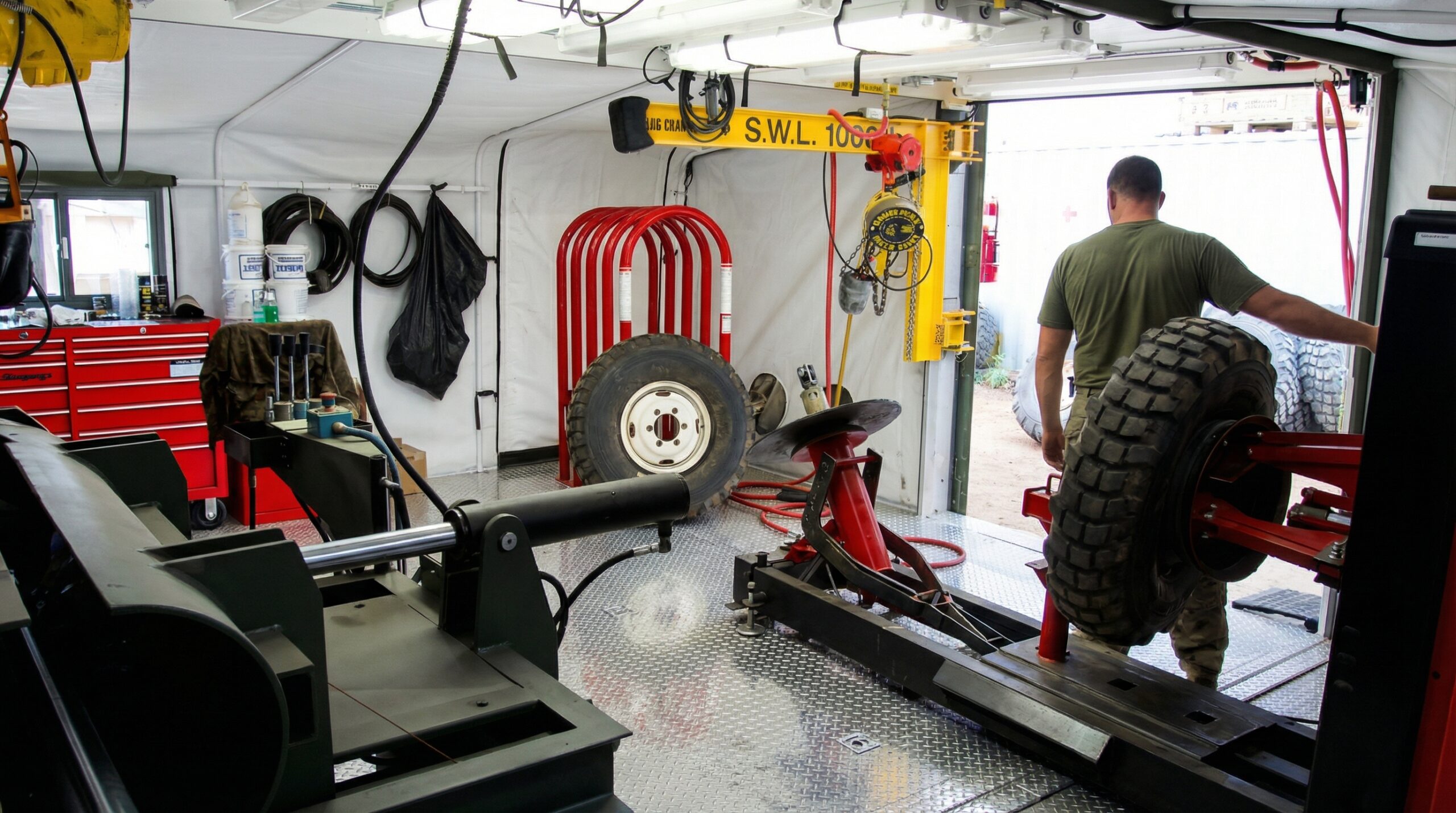

Once deployed, EHMECC offers 3,658 mm (144 inches) of interior height, creating an environment suited for specialized uses beyond typical shelters. Applications include engine maintenance bays, surgical theaters, or large-scale communications centers. This vertical capacity makes EHMECC uniquely capable of hosting operations that standard container solutions simply cannot support. By raising the roof, operators gain a whole new capability set that broadens the operational envelope and maximizes mission effectiveness.
Specifications
| Specification | Packed |
|---|---|
| Width (packed) | 2438 mm // 96 in |
| Width (deployed) | 6096 mm // 240 in |
| Length | 6096 mm // 240 in |
| Height | 2438 mm // 96 in |
| Height (deployed) | 3658 mm // 144 in |
| Tare Weight (approx) | 3856 kg // 8483 lbs |
| Payload Volume | 33 m3 // 1172 ft3 |
| Deployed Volume | 132 m3 // 4661 ft3 |
| Deployed Floor Area | 39 m2 // 420 ft2 |
| ISO Stacking | 3 high |
| Certification | Full CSC |
Transported like any 20ft ISO container across all domains
Despite its advanced features, EHMECC retains the logistical simplicity of a standard 20ft ISO container. It can be handled by forklifts, cranes, or palletized load systems, and is fully CSC certified for transport by air, sea, and land. At just 8ft high in transport mode, EHMECC fits military cargo aircraft including the C-130, C-17, C-5, and A400M. This ensures global deployability, seamless logistics, and integration into existing military and commercial transport networks.
Options
Structure & Configuration
Expandable wing system
Mission Specific partitions (hard or fabric)
Fabric and paint upgrades (IRR, CARC, EMI)
Interconnector and corridor kits
Weather-resistant hard personnel doors
Double-zip roll-up doors with Velcro sealsÊ
Rigid vinyl-framed sliding windows
Blackout window systems & insect netting
Blackout entry vestibule systems
Integrated electrical & data networking
Communication & IT systems integration
Plumbing and mechanical system integrationÊ
Permanent equipment & specialist fit-outs

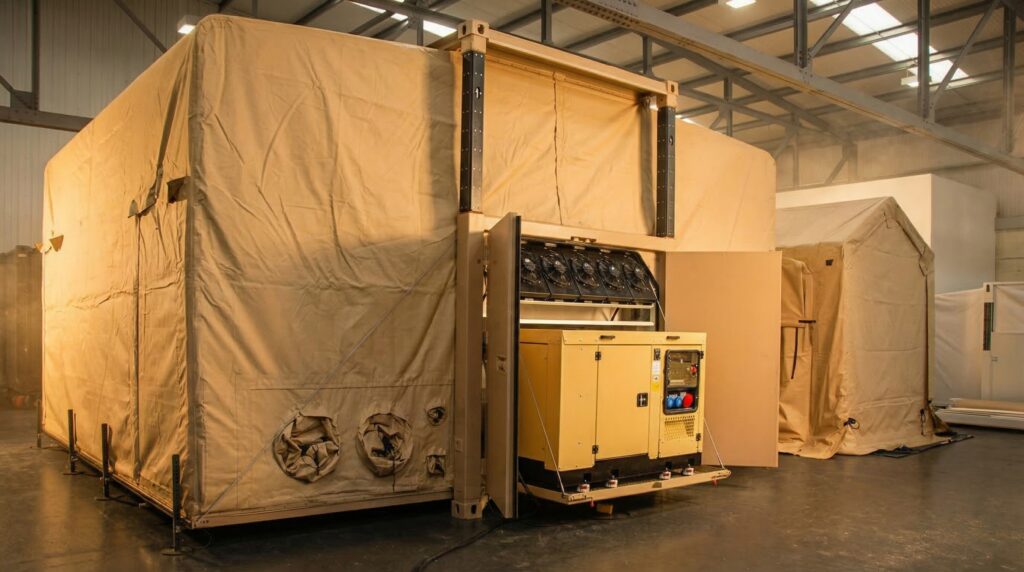

Integral generator & isolated mechanical room
Integrated HVAC systems
High-performance insulation (walls, floors, ceilings)
Solar shades & environmental coverings
Levelling jacks
Wing supports for truck mounted operation
Platform and stair entry system
Mobility trailers (military / civil)

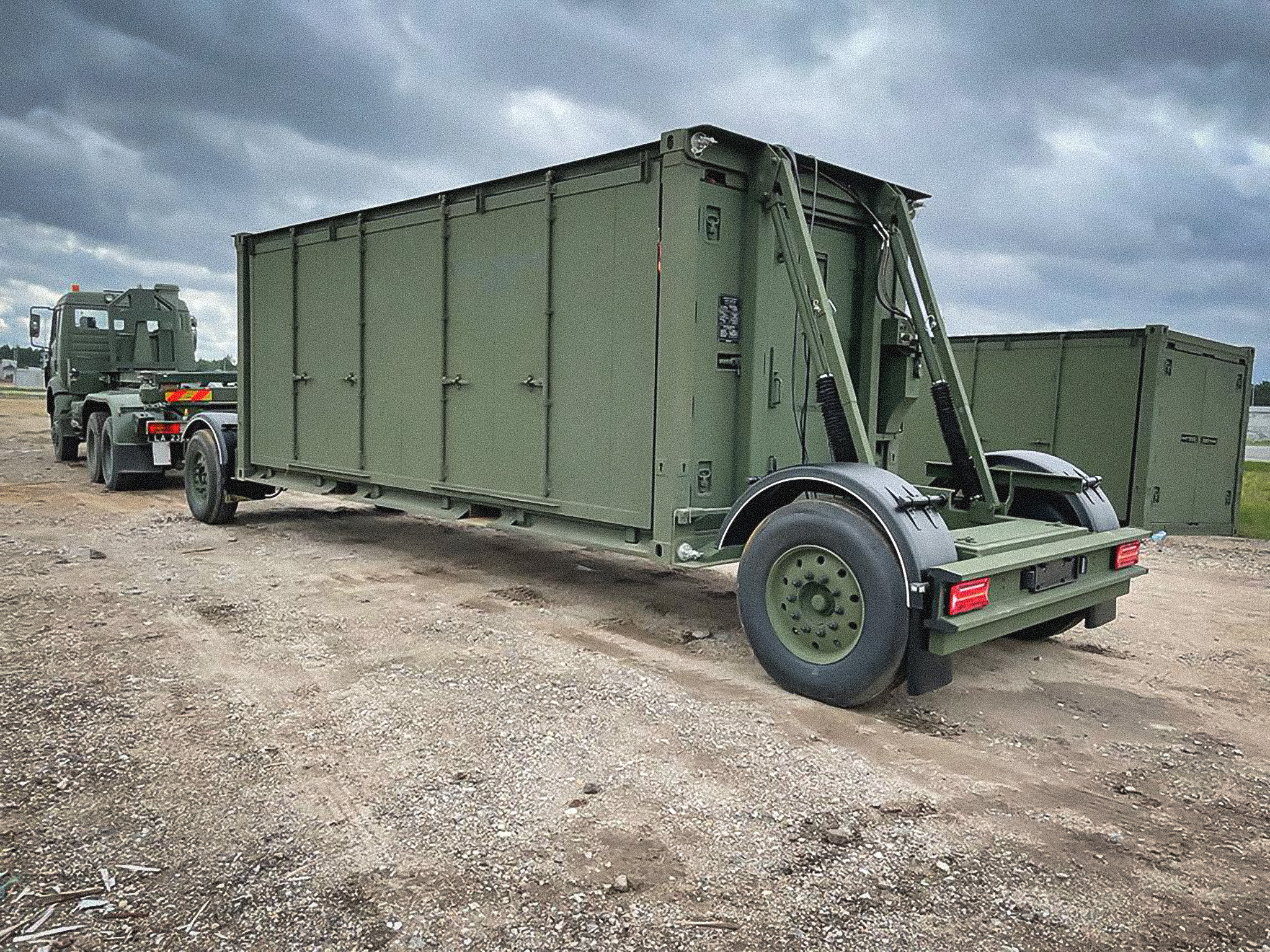

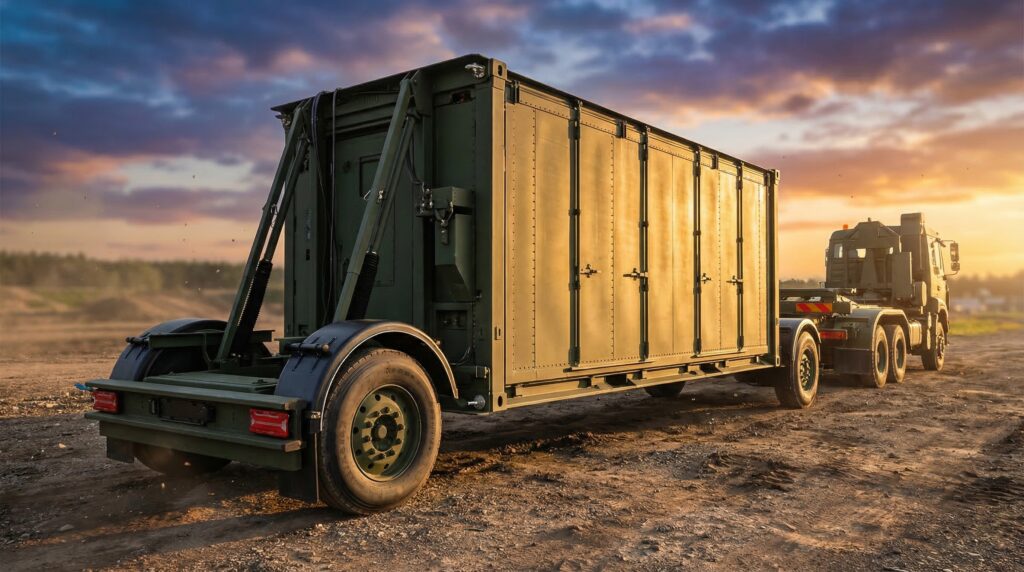

Mobiliser wheelsets
Interconnector kits for all Weatherhaven shelters
Superior design simplifies deployment while saving critical operational time
EHMECC is engineered for simplicity and speed. Deployment requires no specialized tools, no extensive training, and takes under 10 minutes to become operational. It can even be deployed while still on a truck, reducing setup time in challenging or dangerous locations. The design also minimizes maintenance requirements, ensuring years of reliable service in the field. For militaries and emergency responders, EHMECC’s rapid setup provides a decisive advantage in mission-critical situations.
Rapid deployment, limitless applications, and scalable interconnected facilities.

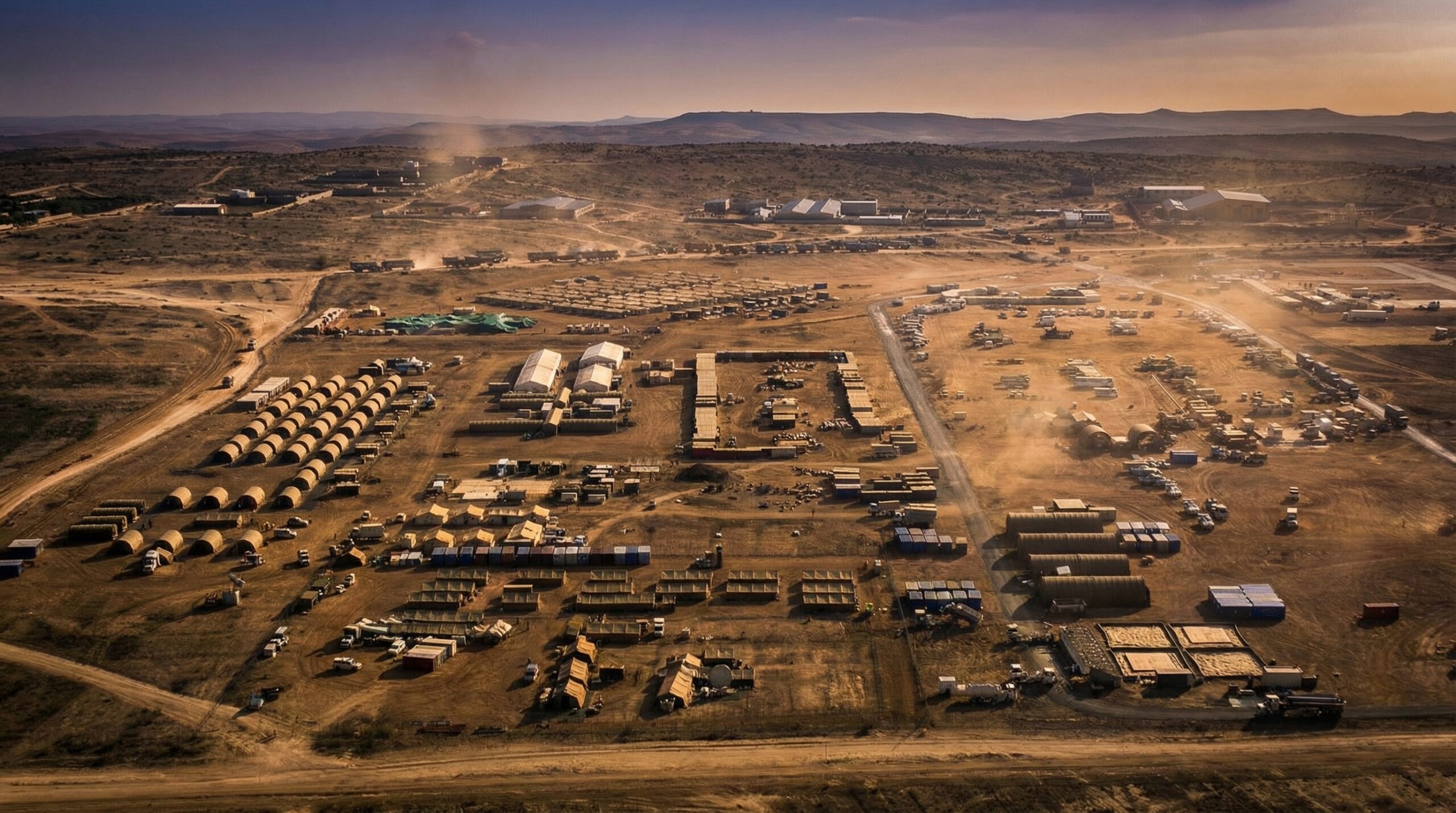

EHMECC is designed for flexibility, scalability, and speed. Units can be interconnected with other expandable containers and soft-shelter systems to form larger facilities such as hospitals, command centers, or workshops. Deployment takes less than 20 minutes, protecting equipment until the moment it’s needed. With limitless configurations, optional systems, and bespoke modifications, EHMECC transforms rapidly from container to fully functional facility, supporting military and civilian missions alike wherever fast, reliable infrastructure is required.
