BMECC
Compact 10ft Expanding ISO Shelter Delivering Rapid Deployment and Mission-Ready Capability Anywhere
Rapid deployment from compact ISO footprint to full workspace
MECC-derived expansion system maximizes operational interior usable space
Dual-unit configuration forms standard 20-foot ISO transport module
Intermodal compatibility across air, land, rail, and sea
Rugged steel frame with lightweight composite wall construction
Operates reliably in extreme climates from -51°C to +49°C
Reconfigurable interior supports medical, command, workshop mission roles
Integrated hybrid power options enhance sustained operational effectiveness
Expeditionary Expandable Shelter Delivering Rapid Deployment Operational Dominance Anywhere
The BMECC builds on the proven legacy of Weatherhaven’s MECC (Mobile Expandable Container Configuration), translating its battle-tested expandability into a compact, highly mobile 10-foot ISO footprint. Designed for rapid deployment in contested and austere environments, it delivers immediate operational capability with minimal logistical burden. Like the original MECC, it transforms from a transport-efficient container into a functional workspace, enabling forces to establish mission-critical infrastructure quickly and decisively.
BMECC Enables Rapid Deployment and Mission Dominance
Example Applications
Compact ISO Footprint Expands Into Full Capability Mission Infrastructure Platform

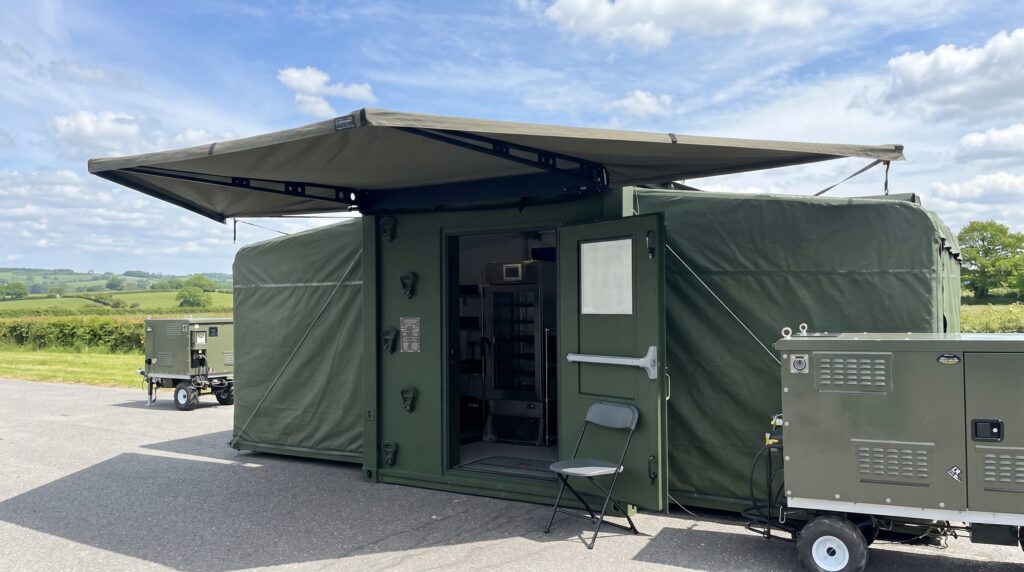

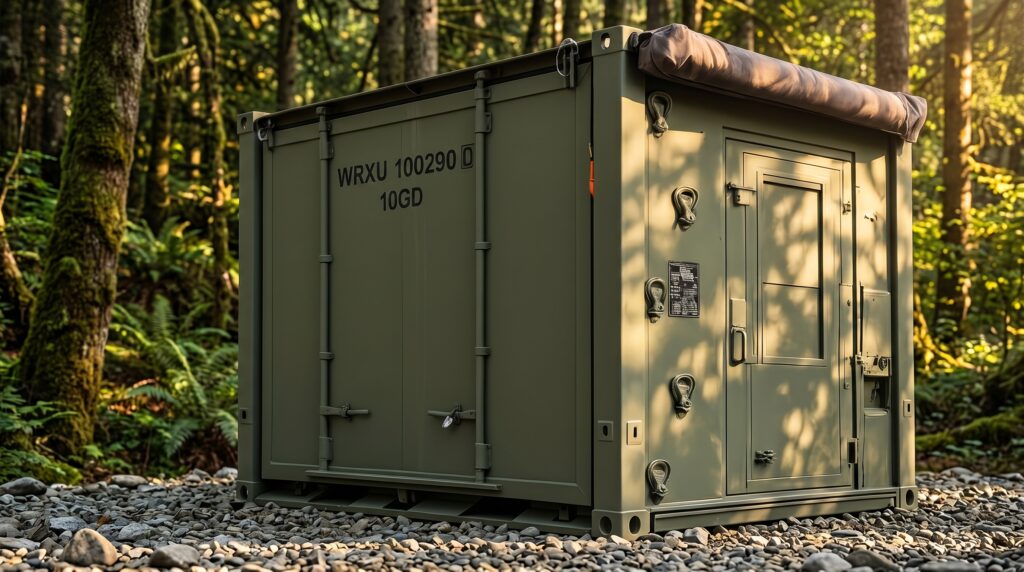

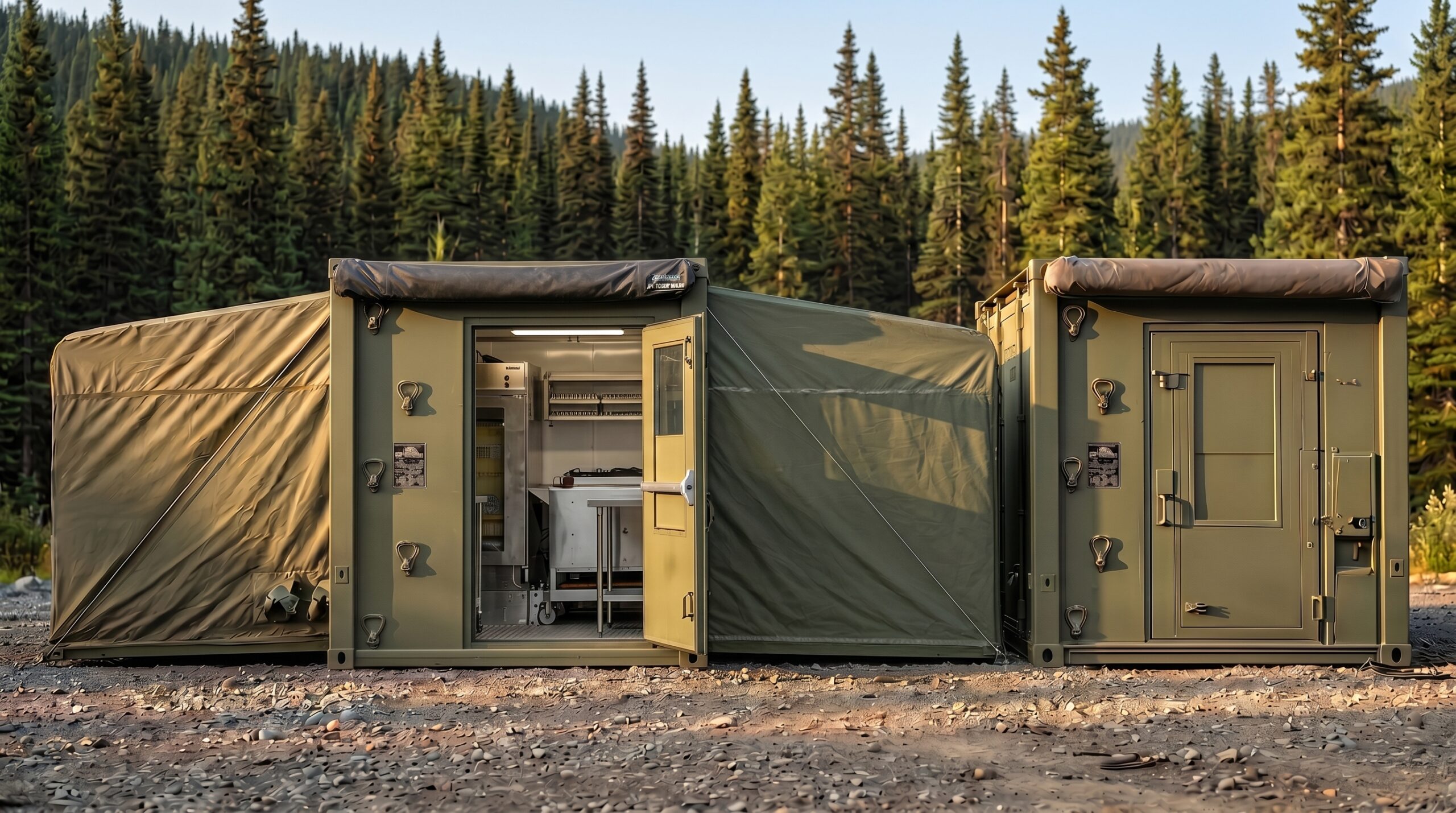

Drawing directly from MECC’s hallmark expanding wall system, the BMECC maximizes usable interior space while maintaining a minimal transport profile. In stowed configuration, it meets 10-foot ISO standards, enabling streamlined logistics. Once deployed, the unit expands to create a fully insulated, climate-controlled environment. This scalable spatial efficiency mirrors the MECC’s operational philosophy, delivering outsized capability from a compact footprint, ideal for forward operating bases and rapidly evolving mission sets.
Intermodal Mobility Ensures Seamless Transport Across All Operational Theaters

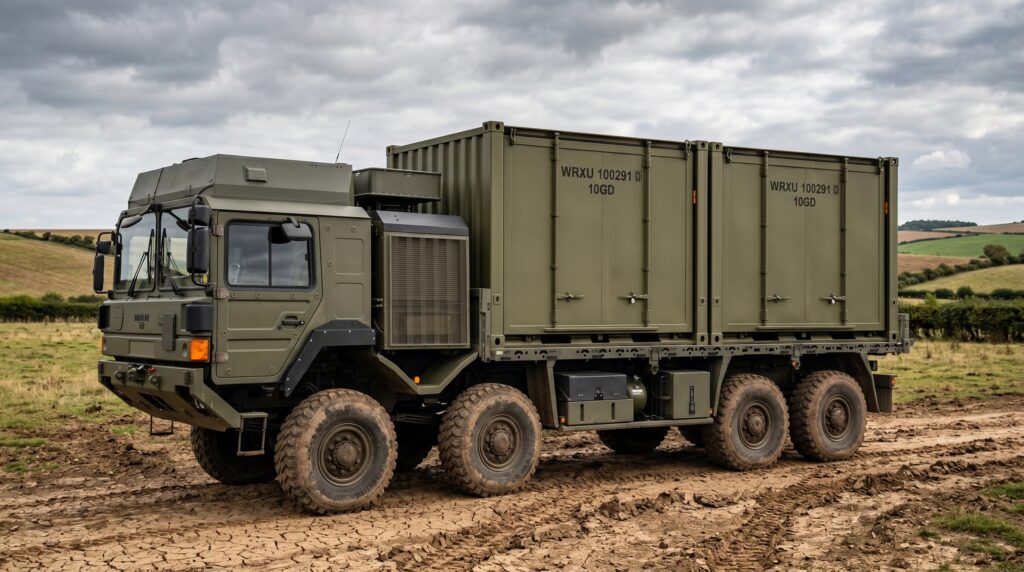

Leveraging MECC’s intermodal DNA, the BMECC integrates seamlessly into global logistics networks. Two units combine into a standard 20-foot ISO configuration, ensuring compatibility with existing transport assets across land, sea, and air. This modular transportability enhances deployment speed and reduces supply chain friction. Whether moved by tactical airlift or commercial freight, the BMECC maintains the MECC standard of mobility, ensuring mission readiness wherever forces are projected.
Specifications
| Specifications | BMECC 8 ft | BMECC 8 ft 6 in |
|---|---|---|
| Width (packed) | 2438 mm // 96 in | 2438 mm // 96 in |
| Width (deployed) | 6172 mm // 243 in | 6477 mm // 255 in |
| Length | 3048 mm // 120 in | 3048 mm // 120 in |
| Height | 2438 mm // 96 in | 2590 mm // 102 in |
| Tare Weight (approx) | 2500 kg // 5500 lbs | 2600 kg // 5720 lbs |
| Payload Volume | 15 m3 // 550 ft3 | |
| Deployed Volume | 45 m3 // 1590 ft3 | |
| Deployed Floor Area | 19 m2 // 210 ft2 | 19 m2 // 210 ft2 |
| ISO Stacking | 9 high | 9 high |
| Certification | Full CSC | Full CSC |
Mission Adaptive Interiors Support Command, Medical, Technical, And Logistics Roles

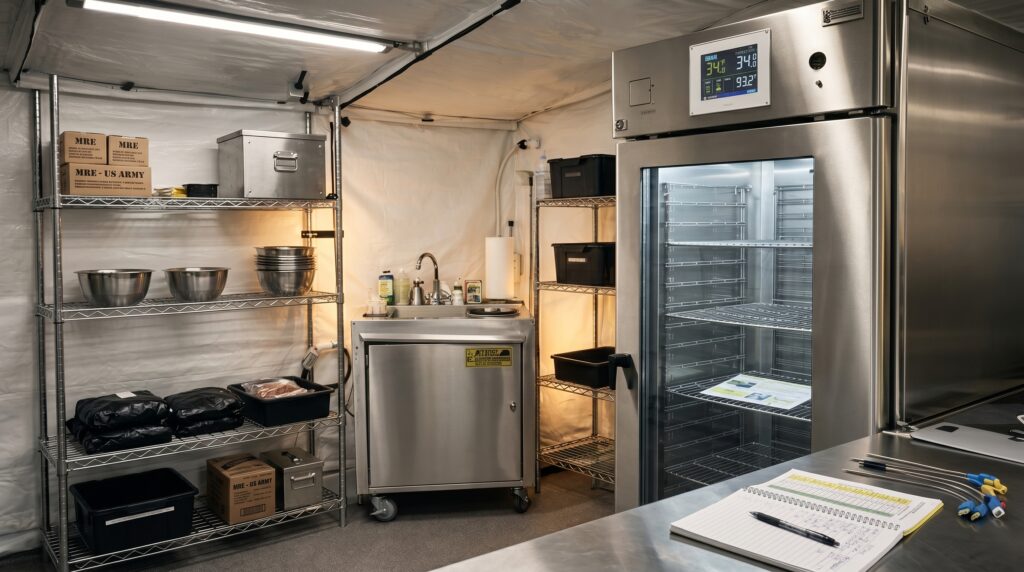

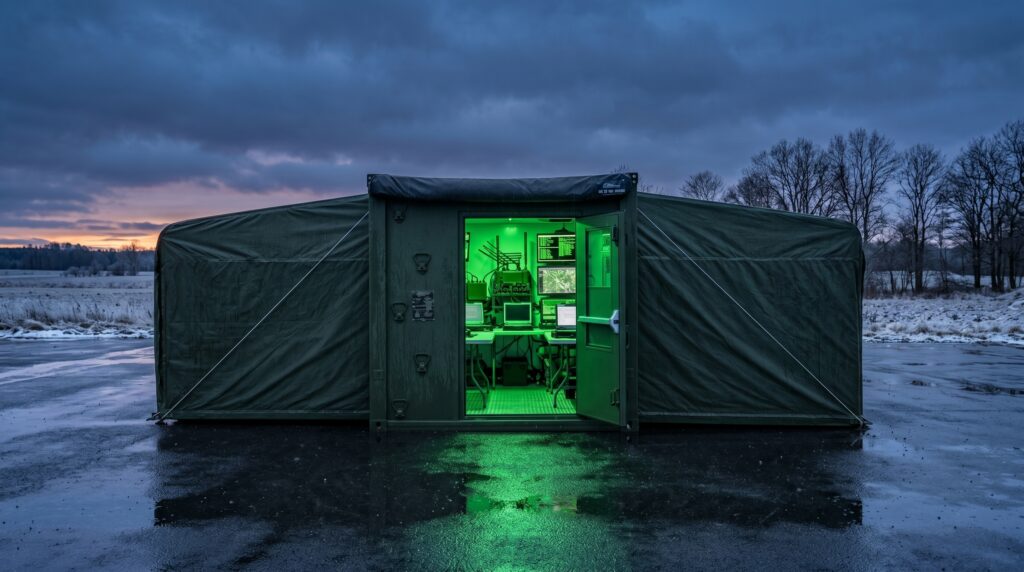

Consistent with MECC’s versatile interior architecture, the BMECC is engineered for multi-role adaptability. Configurations can be tailored for command posts, medical treatment facilities, kitchens, or technical workshops. Reconfigurable partitions, integrated furnishings, and mission-specific equipment allow operators to customize layouts rapidly. This flexibility reflects the MECC’s core strength—supporting diverse operational requirements within a single platform, ensuring units remain agile and responsive across dynamic mission environments.
Options
Structure & Configuration
Expandable wing system
Mission Specific partitions (hard or fabric)
Fabric and paint upgrades (IRR, CARC, EMI)
Interconnector and corridor kits
Weather-resistant hard personnel doors
Double-zip roll-up doors with Velcro sealsÊ
Rigid vinyl-framed sliding windows
Blackout window systems & insect netting
Blackout entry vestibule systems
Integrated electrical & data networking
Communication & IT systems integration
Plumbing and mechanical system integrationÊ
Permanent equipment & specialist fit-outs
Integral generator & isolated mechanical room
Integrated HVAC systems
High-performance insulation (walls, floors, ceilings)
Solar shades & environmental coverings
Levelling jacks
Wing supports for truck mounted operation
Platform and stair entry system
Mobility trailers (military / civil)
Mobiliser wheelsets
Interconnector kits for all Weatherhaven shelters
Hardened Construction Withstands Extreme Climates And Demanding Operational Conditions

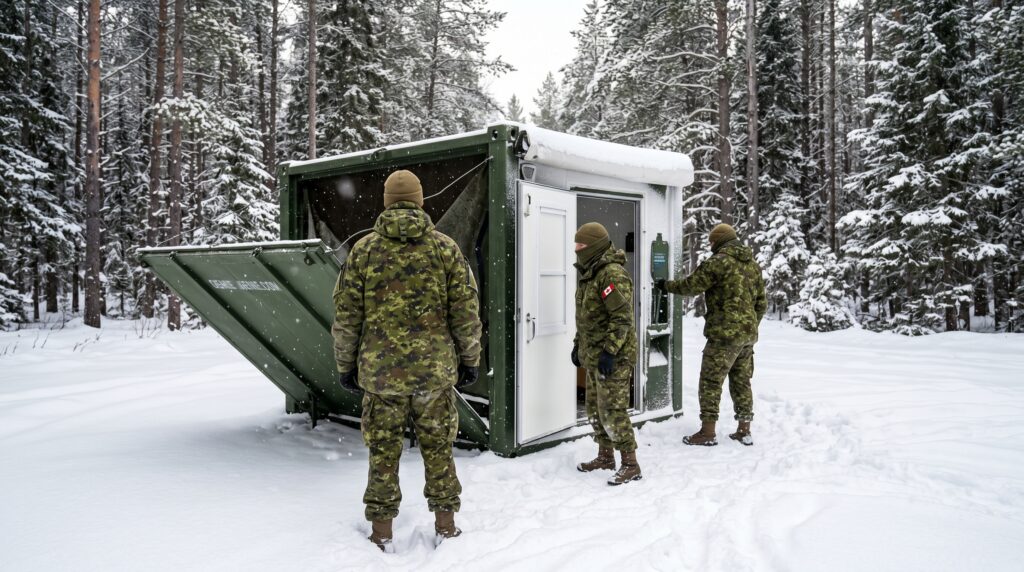

Built upon the ruggedized engineering principles of the MECC, the BMECC delivers exceptional durability in extreme conditions. Its steel frame and aluminum composite construction provide strength without compromising deployability. Certified to operate across AECTP 230 climate zones A1 through C3, it performs in temperatures ranging from +49°C to -51°C. This resilience ensures uninterrupted operations, reinforcing the MECC lineage of shelters designed to endure the harshest operational theaters.
Secure, Efficient, And Integrated Power-Ready Design Enhances Operational Effectiveness
Echoing MECC’s focus on operator effectiveness, the BMECC integrates comfort, safety, and power-readiness into a cohesive system. Its insulated interior, anti-static flooring, and bright finishes enhance usability during extended missions. The off-center door enables hybrid power integration, while robust locking systems ensure security in transit and deployment. This fusion of human-centric design and tactical functionality ensures personnel can sustain high performance in demanding operational scenarios.
