ATEPS
Deploy shelters faster with seamless 463L airlift compatibility
Integrated 463L pallet compatible with military airlift aircraft
Single-pallet transport, compact 84″ × 104″ footprint
Insulated aluminum core for strength and thermal efficiency
Durable aluminium frame with non-slip heavy-duty flooring
Expands to 244″ × 104″ floor size in under 5 minutes.
Two-person setup, no tools or equipment required
Built-in power, networks, water systems, and HVAC
Flexible handling: forklift, sling, and tie-down points
Exceptional Air Transport Logistics for Rapid Military Deployment
The Weatherhaven Air Transportable Expandable Pallet Shelter (ATEPS) is purpose built around the 463L military cargo pallet system. By integrating directly with the 463L footprint, ATEPS seamlessly interfaces with established military air cargo handling procedures worldwide. This design eliminates special adapters or bespoke loading processes, allowing rapid, predictable deployment using existing logistics infrastructure and ensuring immediate compatibility across joint and coalition airlift operations.
Integrated 463L pallet, global airlift, instant mission space.

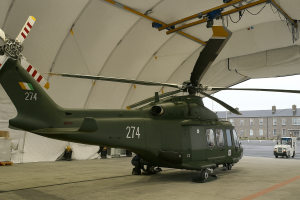

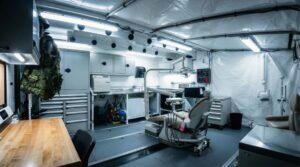

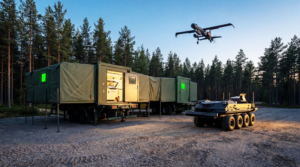

Example Applications
Environmentally Controlled Workspaces Anywhere Airlift Can Reach

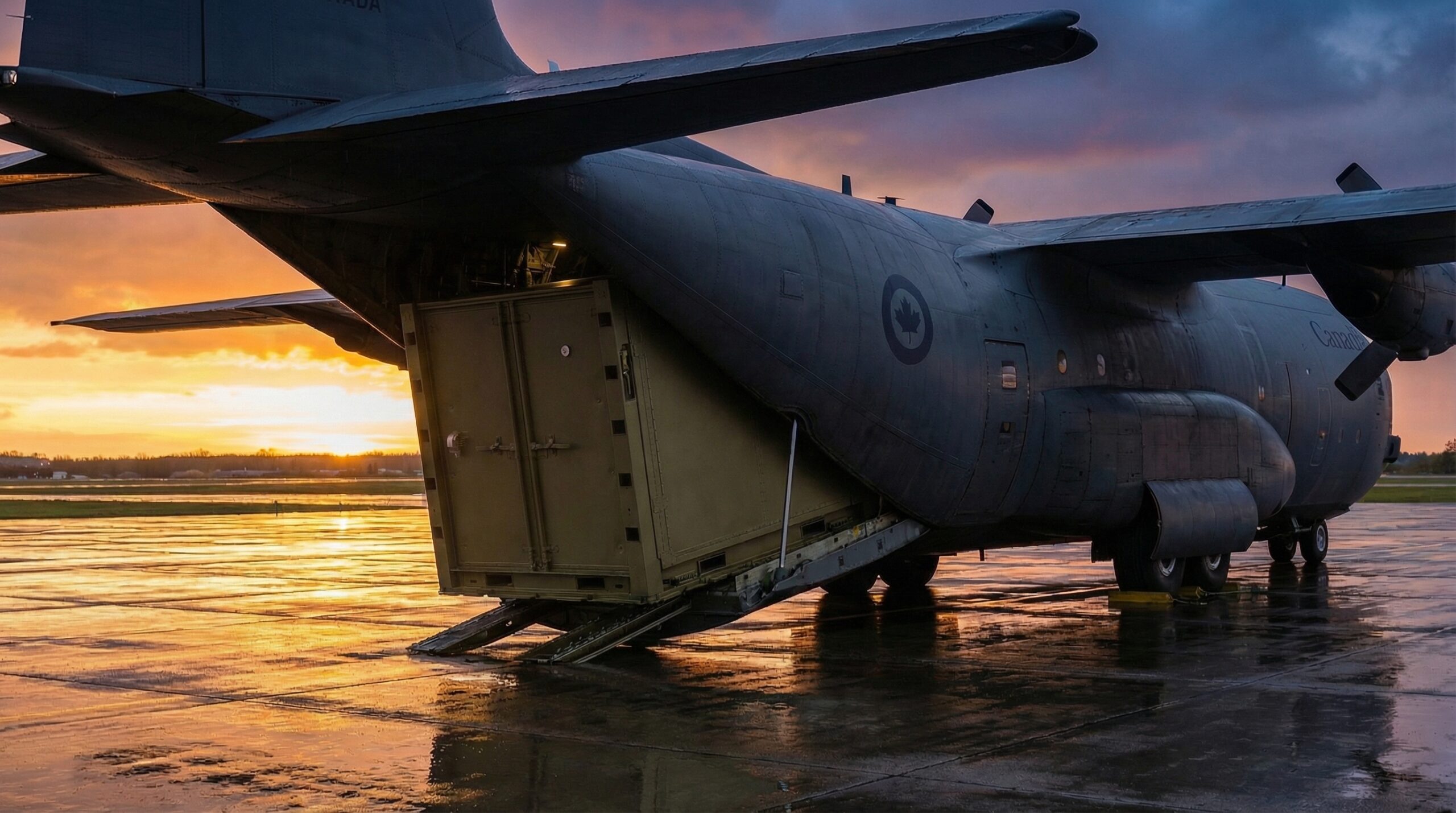

ATEPS delivers a major logistics advantage by simplifying how shelters move from base to forward operating location. Mounted on a single 463L pallet, it can be quickly loaded, restrained, and offloaded using standard cargo handling equipment. This compatibility dramatically reduces preparation time, minimizes handling risk, and enables faster mission response. For military planners, ATEPS means fewer logistical variables and more reliable timelines during high-tempo operations.
Compatible with All Major Military Fixed-Wing Transport Aircraft

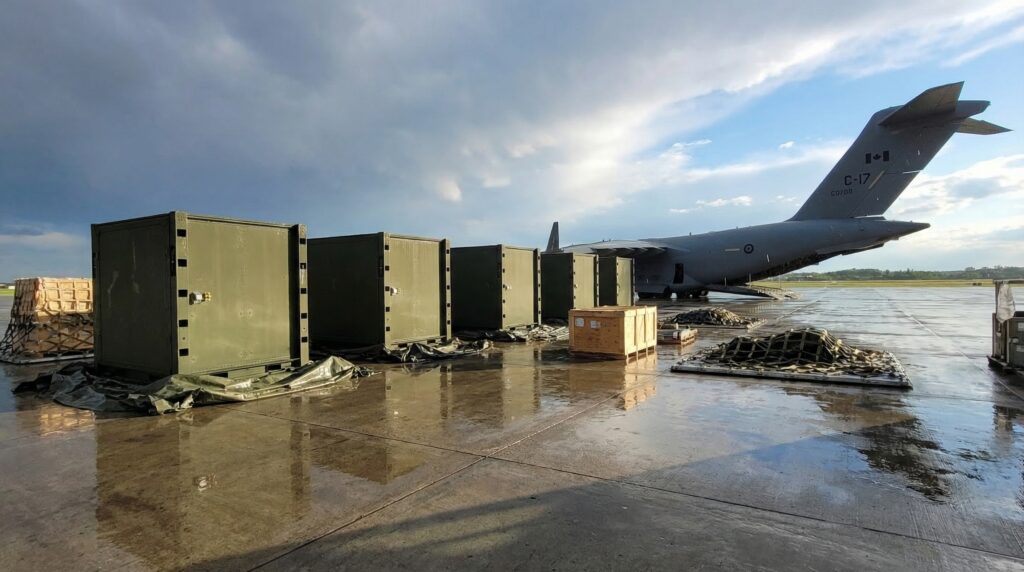

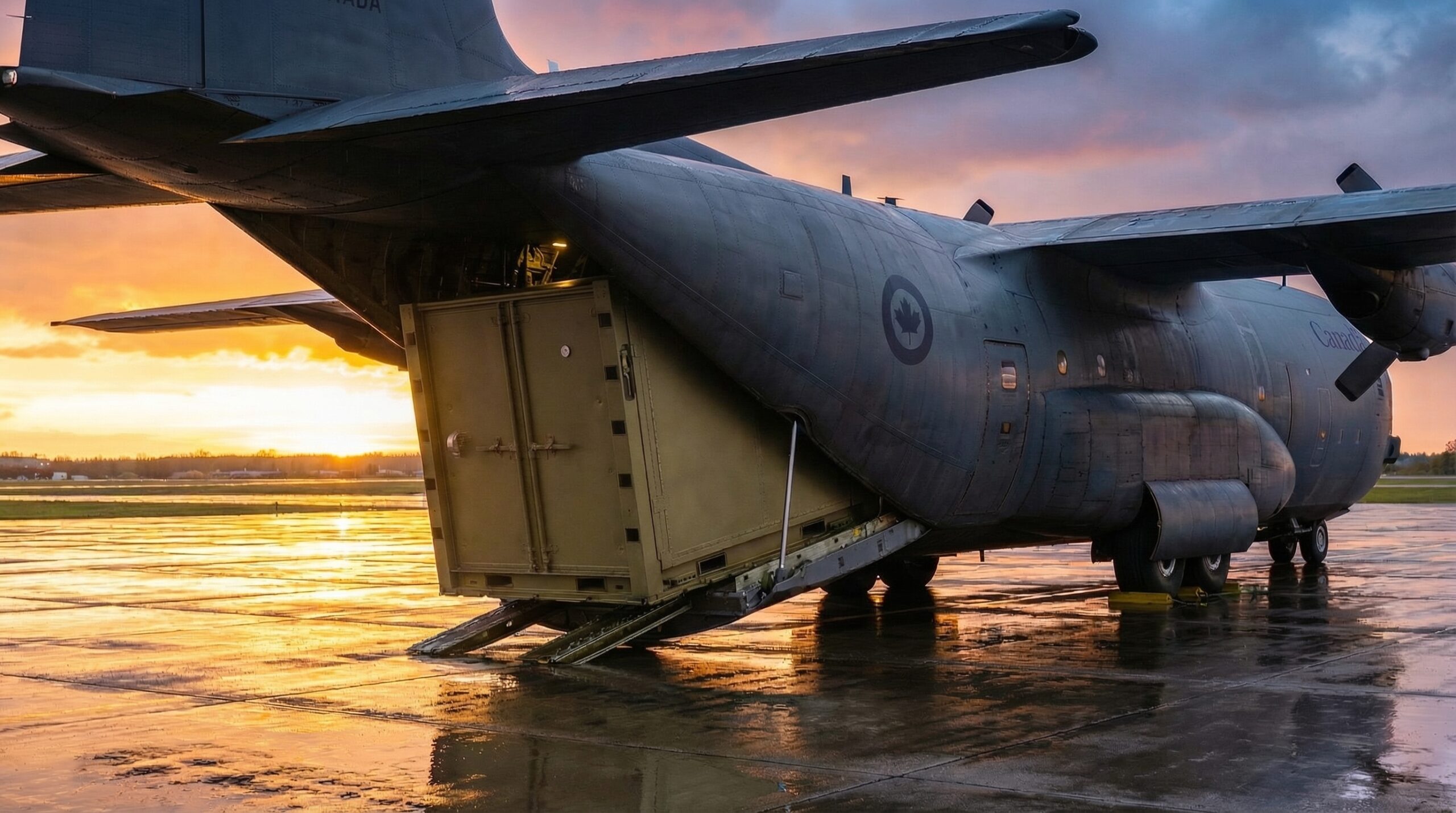

Because it conforms to 463L pallet dimensions and aircraft height restrictions, ATEPS can be transported aboard C-17, C-130, A400M, and C-5 aircraft without modification. This universal compatibility allows commanders to select aircraft based on availability rather than cargo limitations. Whether deploying by strategic or tactical airlift, ATEPS moves easily within established air mobility frameworks, supporting rapid force projection and distributed operations.
Specifications
| Specification | ATEPS |
|---|---|
| Length | 2642 mm // 104 in |
| Width (packed) | 2134 mm // 84 in |
| Width (deployed) | 4629 mm // 182 in |
| Height | 2421 mm // 95 in |
| Tare Weight | 1000 kg // 2205 lbs |
| Payload Volume | 12 m3 // 500 ft3 |
| Deployed Volume | 29.6 m3 // 1046 ft3 |
| Deployed Floor Area | 12.2 m2 // 132 ft2 |
Immediate Access to Integrated Mission Technologies Upon Deployment
ATEPS is engineered to deliver operational capability the moment it is offloaded from the aircraft. Integrated ports for electrical power, communications, and environmental control units enable rapid connection without structural modification. Once expanded, the shelter supports command-and-control systems, medical equipment, and IT infrastructure immediately. This plug-and-play approach, combined with 463L logistics compatibility, ensures that critical mission technologies are online within minutes of arrival.
Options
Structure & Configuration
Expandable wing system
Fabric and paint upgrades (IRR, CARC, EMI)
Interconnector and corridor kits
Lightweight aluminium frame
Multiple color options
Double-zip roll-up doors with Velcro sealsÊ
Rigid vinyl-framed sliding windows
Blackout window systems & insect netting
All-season insulated cover system
Integrated electrical & data networking
Communication & IT systems integration
Plumbing and mechanical system integrationÊ
Permanent equipment & specialist fit-outs
Integrated HVAC systems
High-performance insulation (walls, floors, ceilings)
Heating systems (oil-burning heaters)
Platform and stair entry system
Mobility trailers (military / civil)
Interconnector kits for all Weatherhaven shelters
Expanding Shelter Technology Proven Through Decades of Use

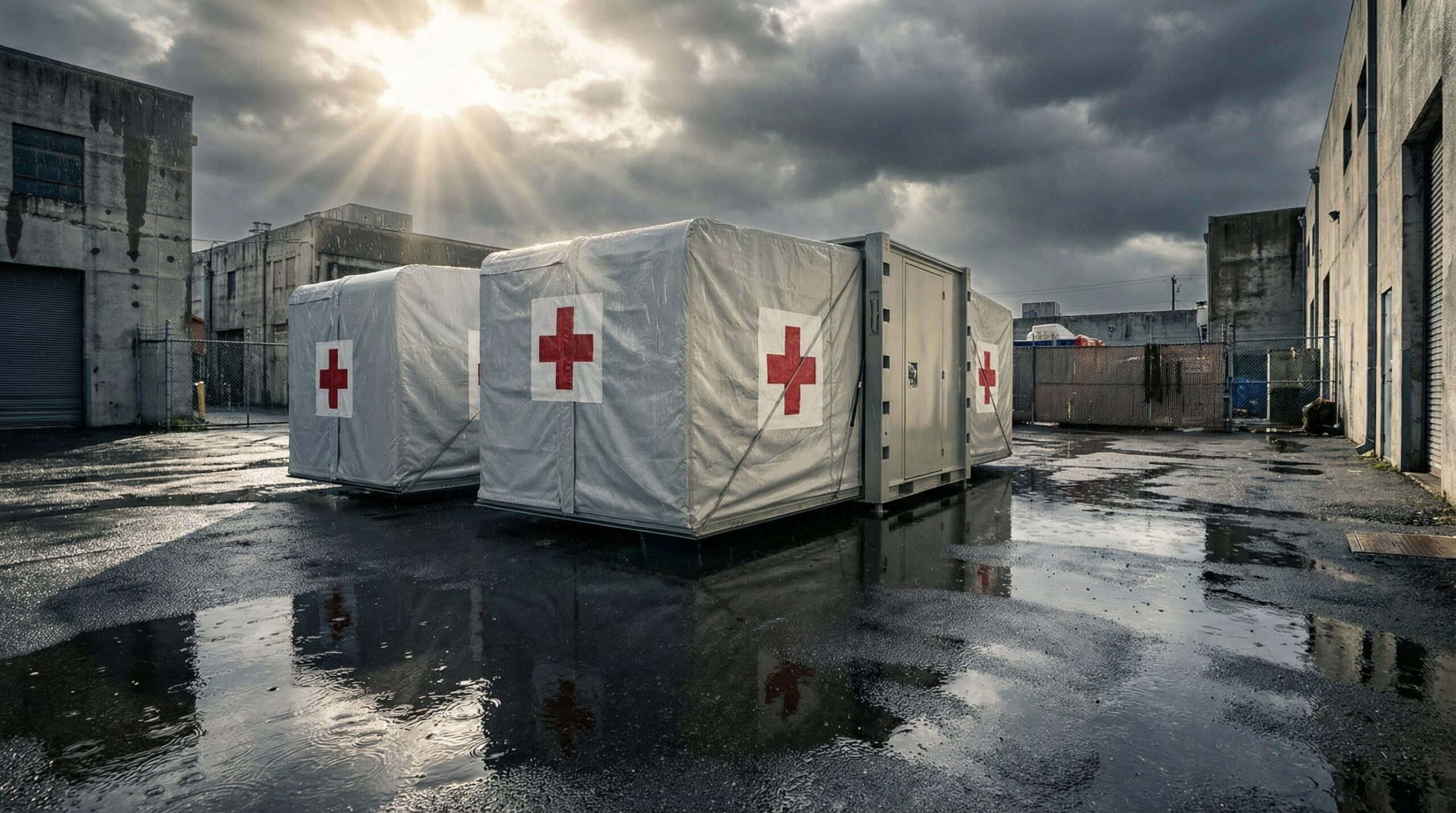

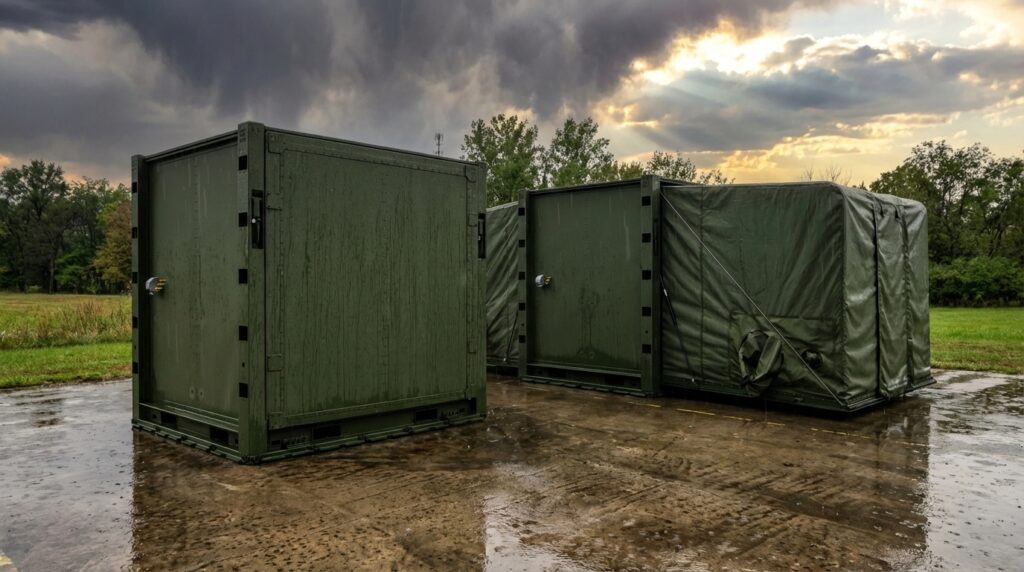

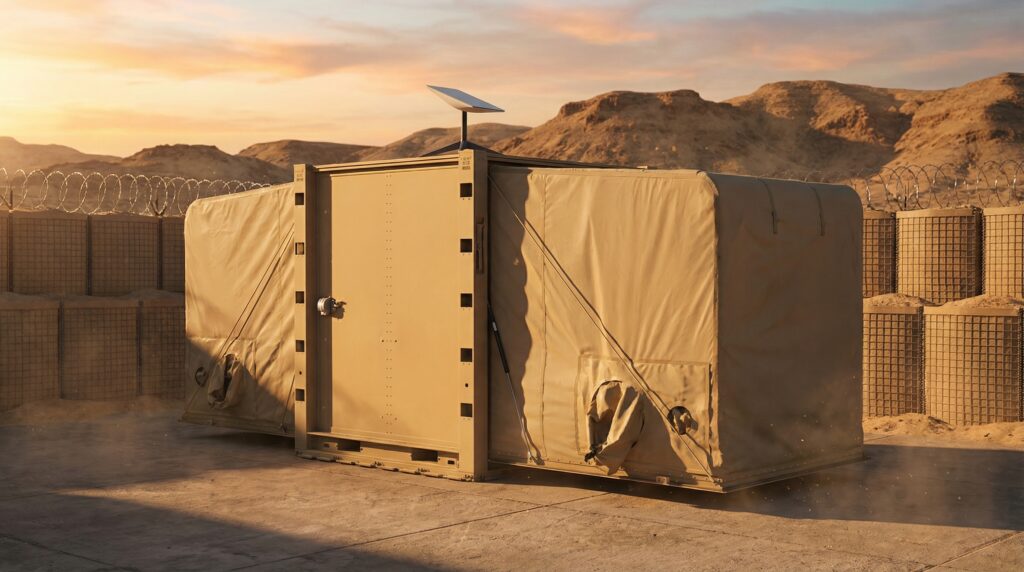

ATEPS belongs to Weatherhaven’s long-established family of Expanding Shelters, refined through decades of operational feedback. Once delivered, the shelter expands rapidly to nearly triple its deployed footprint, creating functional space for command posts, medical facilities, or mission-specific roles. This proven expansion mechanism delivers environmental protection, insulation, and durability while maintaining the compact form factor required for efficient air transport.
Designed and Manufactured Using Advanced Materials and Fabrics
Each ATEPS is assembled using Weatherhaven’s specialist fabrics and aluminum structures. Insulated core panels, wear-resistant flooring, and rugged exterior materials ensure performance in extreme climates. This craftsmanship supports long service life and reduced sustainment costs. Combined with standardised air transport compatibility, ATEPS delivers both durability in the field and reliability throughout the logistics chain.
